Every product here started as a flat PDF.
Turn them, X-ray the chips, pull the tear strips. 19 live 3D proofs, each built automatically from the proof sheet you can download. Nothing to install and no sign-up.Turn them, X-ray them, open them. 19 live 3D proofs built from their proof sheets.
Turn your own proof into 3DFree, right on this page

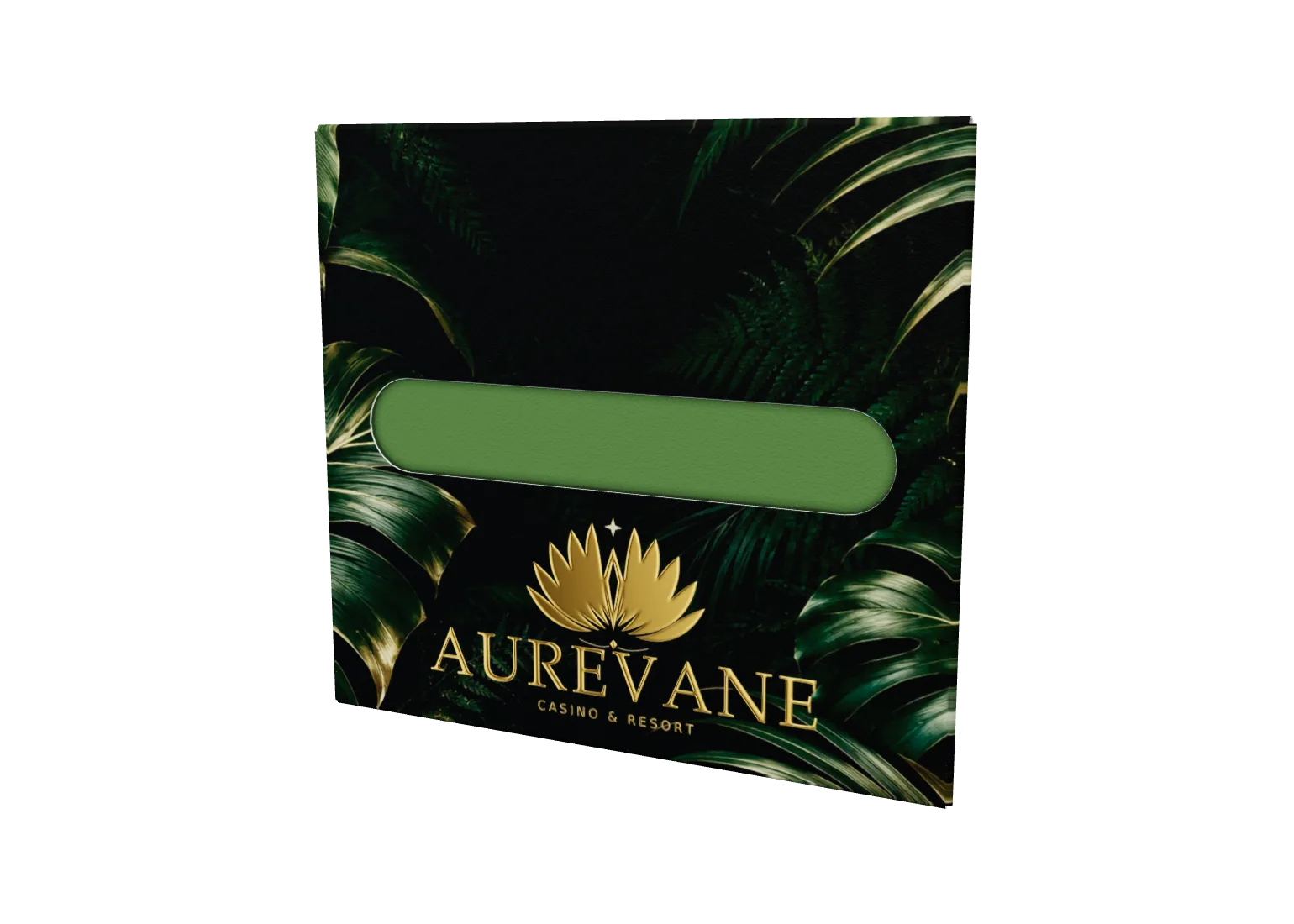

01/19Four-fold card carrier with gold hotfoil
Aurevane casino key carrier
The flat sheet folds into a four-panel carrier with mirror gold foil on both sides. Drop the bamboo casino chip in and the pocket bulges to its real 1.8 mm.
- Stock
- 250 gsm paper
- Foil
- Gold hotfoil, both sides
- Insert
- Bamboo RFID chip, 50.8 mm
- Folded
- 69.2 x 62.3 mm

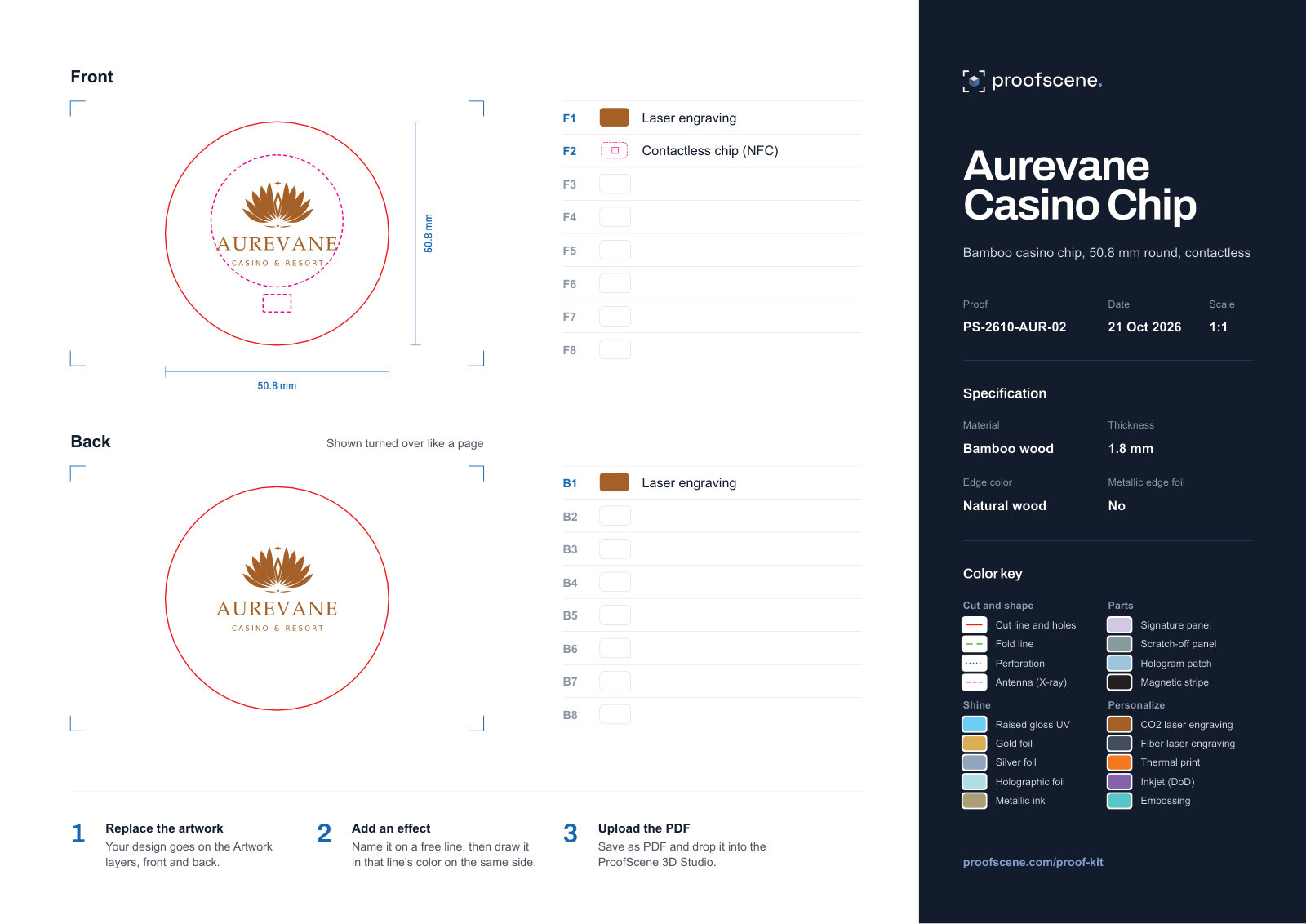

02/19Laser-engraved bamboo RFID chip

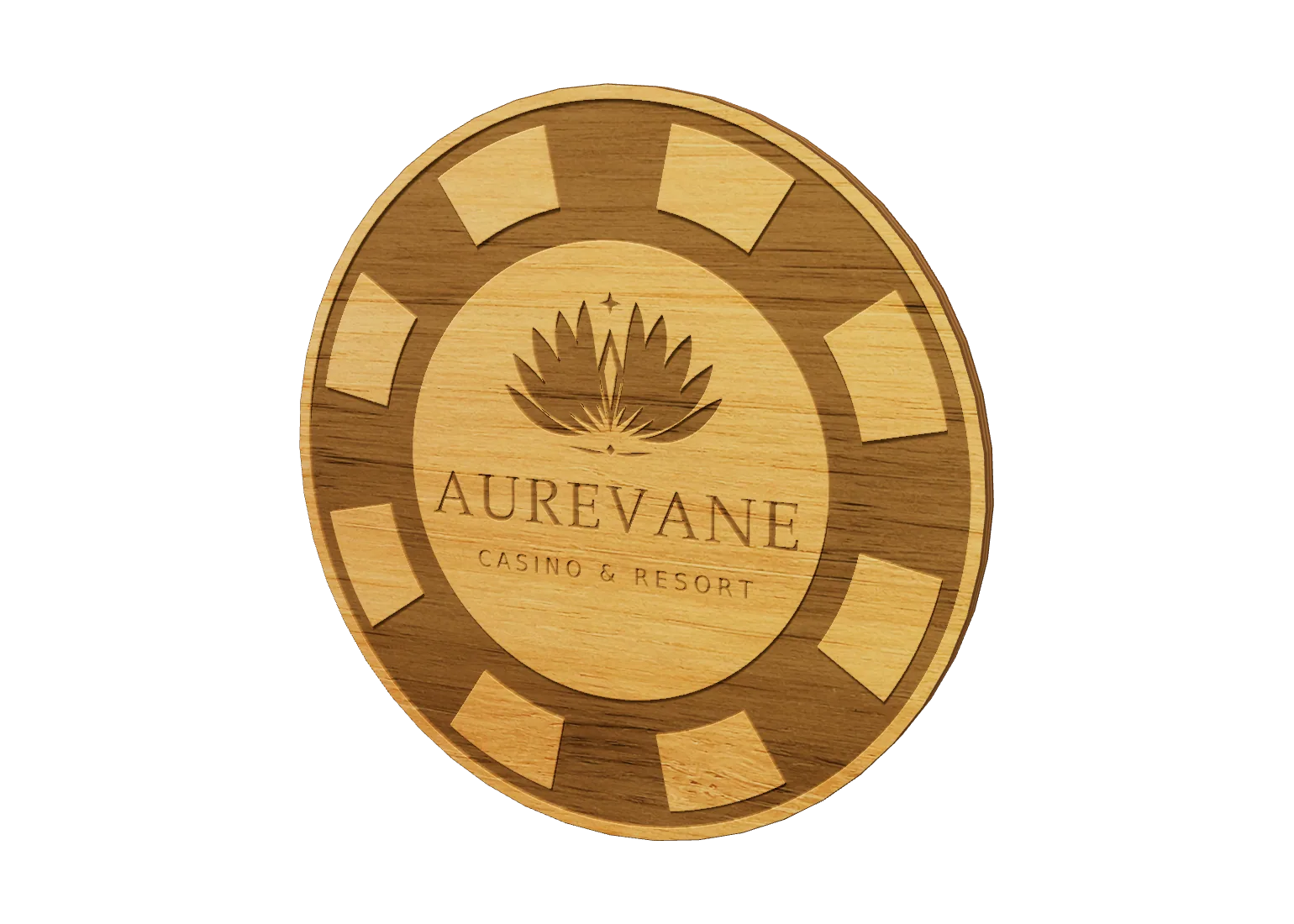

Aurevane bamboo casino chip
A 50.8 mm bamboo disc engraved on both faces. Switch on X-ray to see the 13.56 MHz antenna coil and the NXP MIFARE Ultralight C chip sealed inside the wood.
- Material
- Bamboo, 1.8 mm
- Chip
- NXP MIFARE Ultralight C
- Process
- Laser engraved, both faces

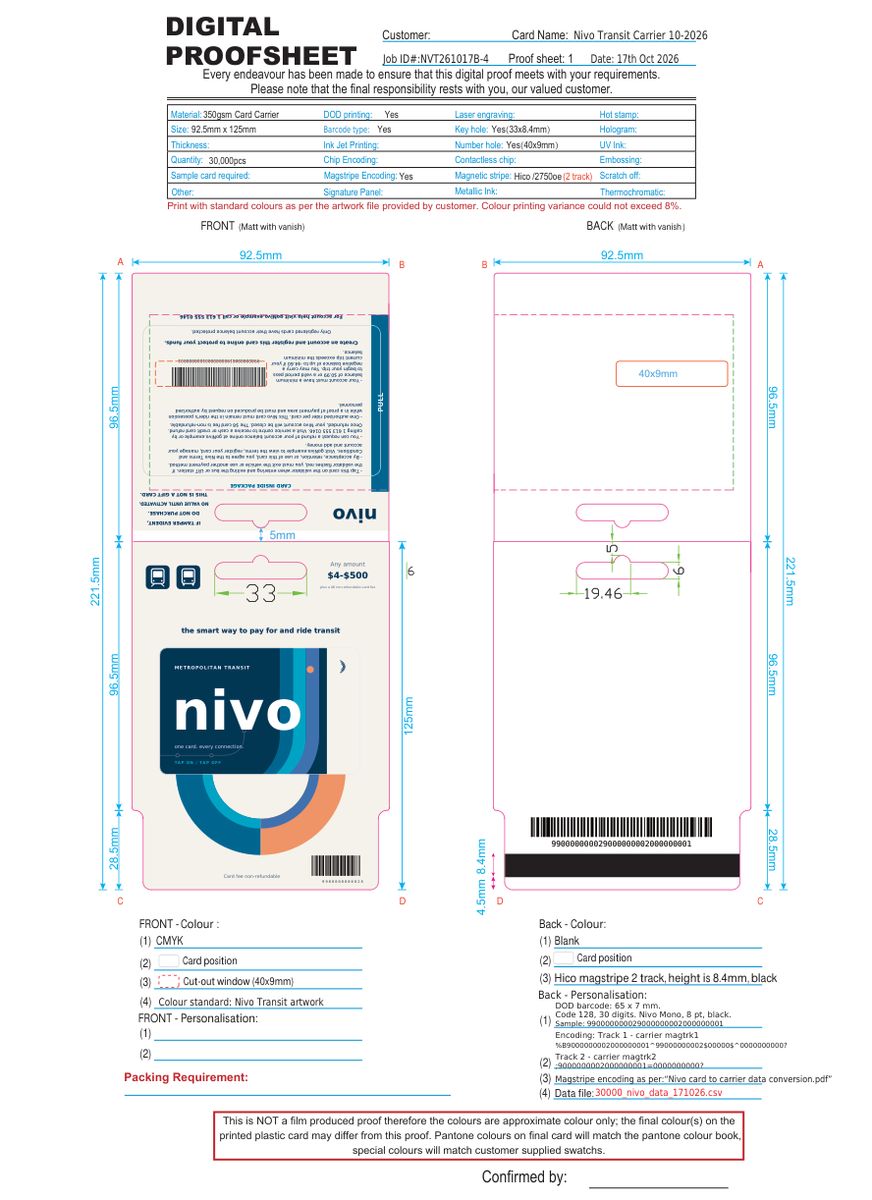

03/19Match-and-attach carrier with a pull strip

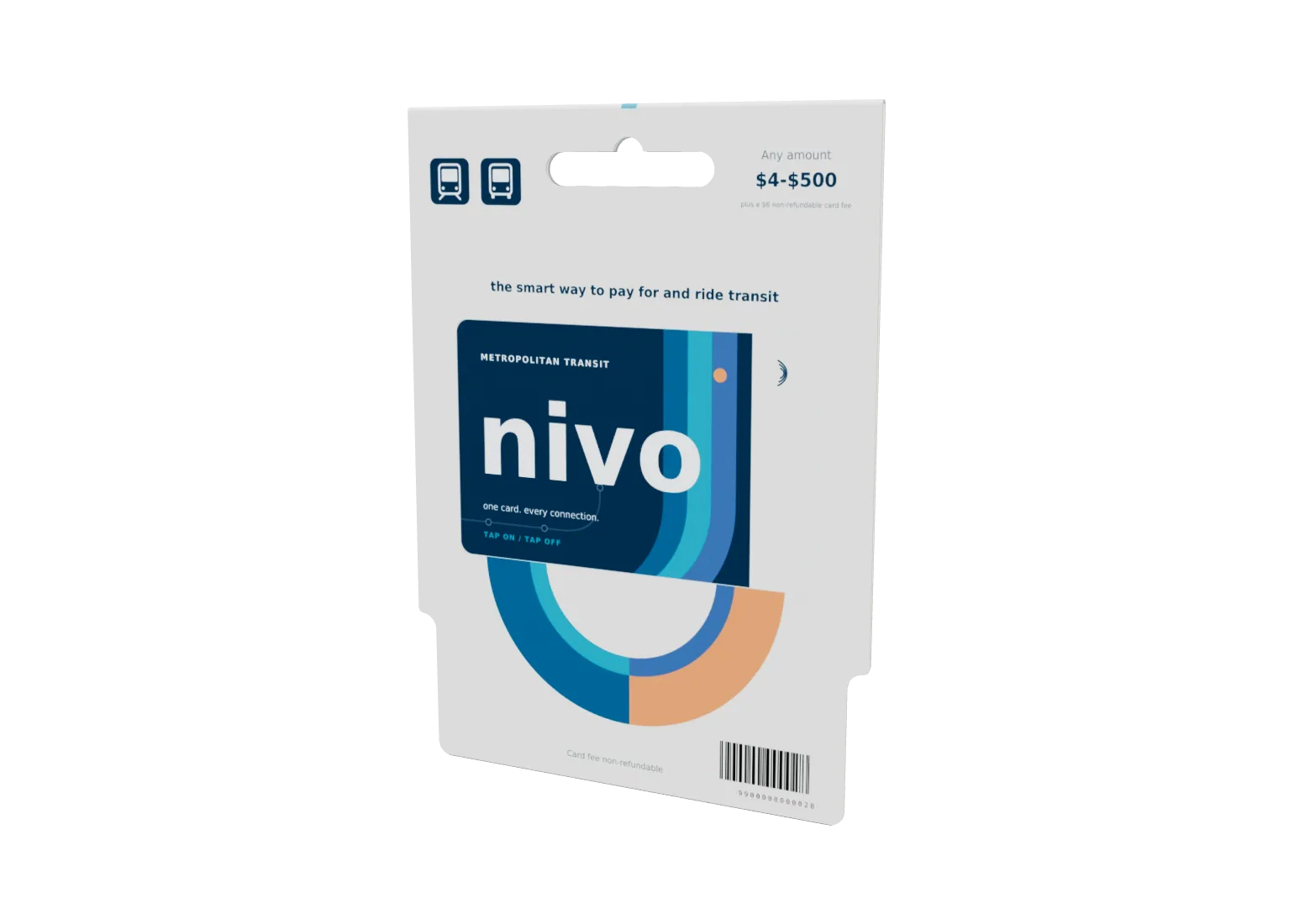

Nivo transit card pack
A transit card glued behind a die-cut window. Pull the strip to tear the carrier open, or see straight through it: the card's printed account number lines up in the 40 x 9 mm window.
- Stock
- 350 gsm card, matt varnish
- Card
- CR80 PVC, glued inside
- Opening
- Perforated pull strip
- Window
- 40 x 9 mm

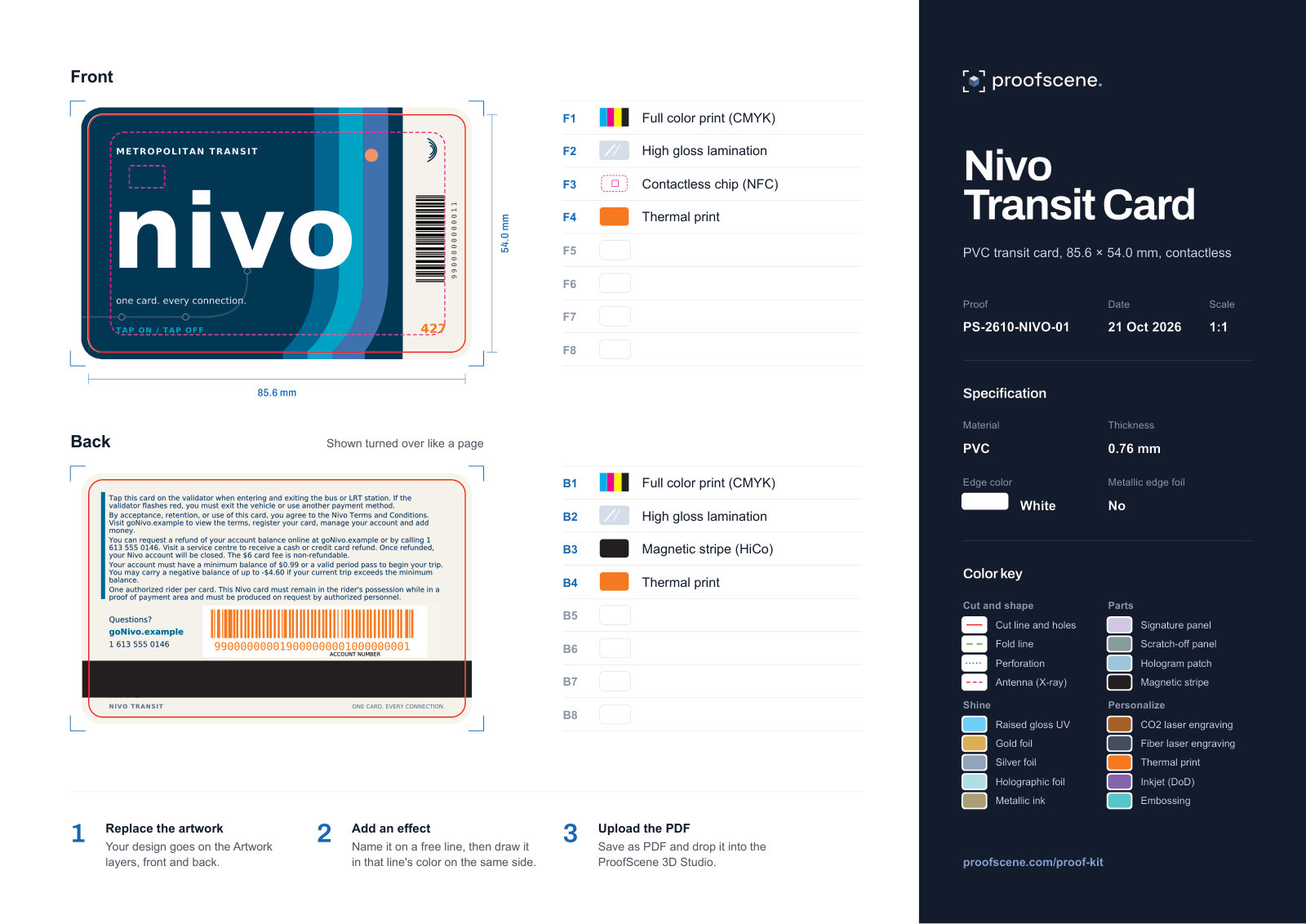

04/19PVC card with chip, magstripe and thermal print

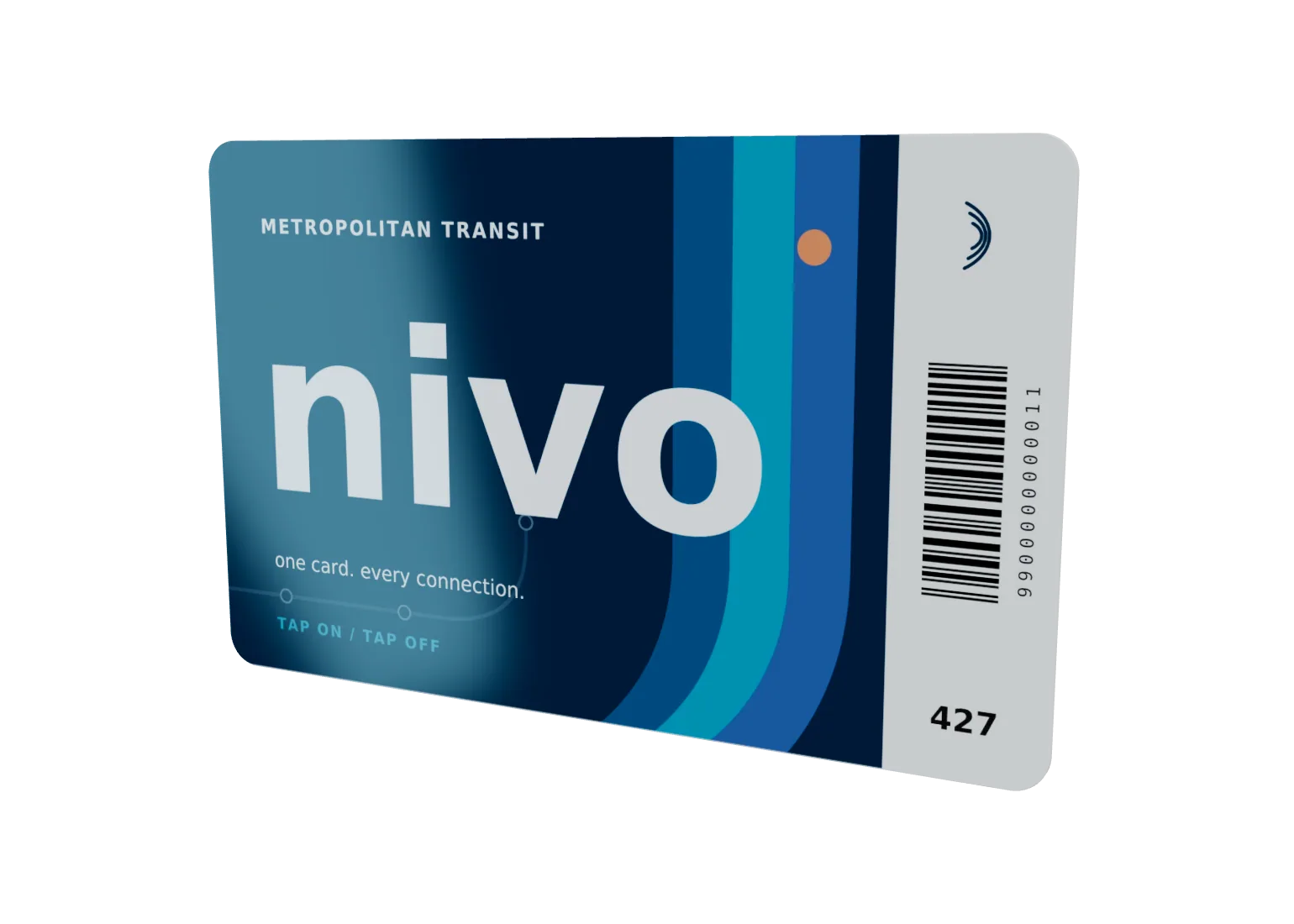

Nivo contactless transit card
Gloss laminated, with a HiCo magstripe and a thermal-printed barcode on the back. X-ray it to find the DESFire EV1 chip and its antenna, then compare gloss, matte and frosted finishes.
- Card
- CR80 PVC, 0.81 mm
- Chip
- NXP DESFire EV1 256
- Back
- HiCo magstripe, thermal barcode

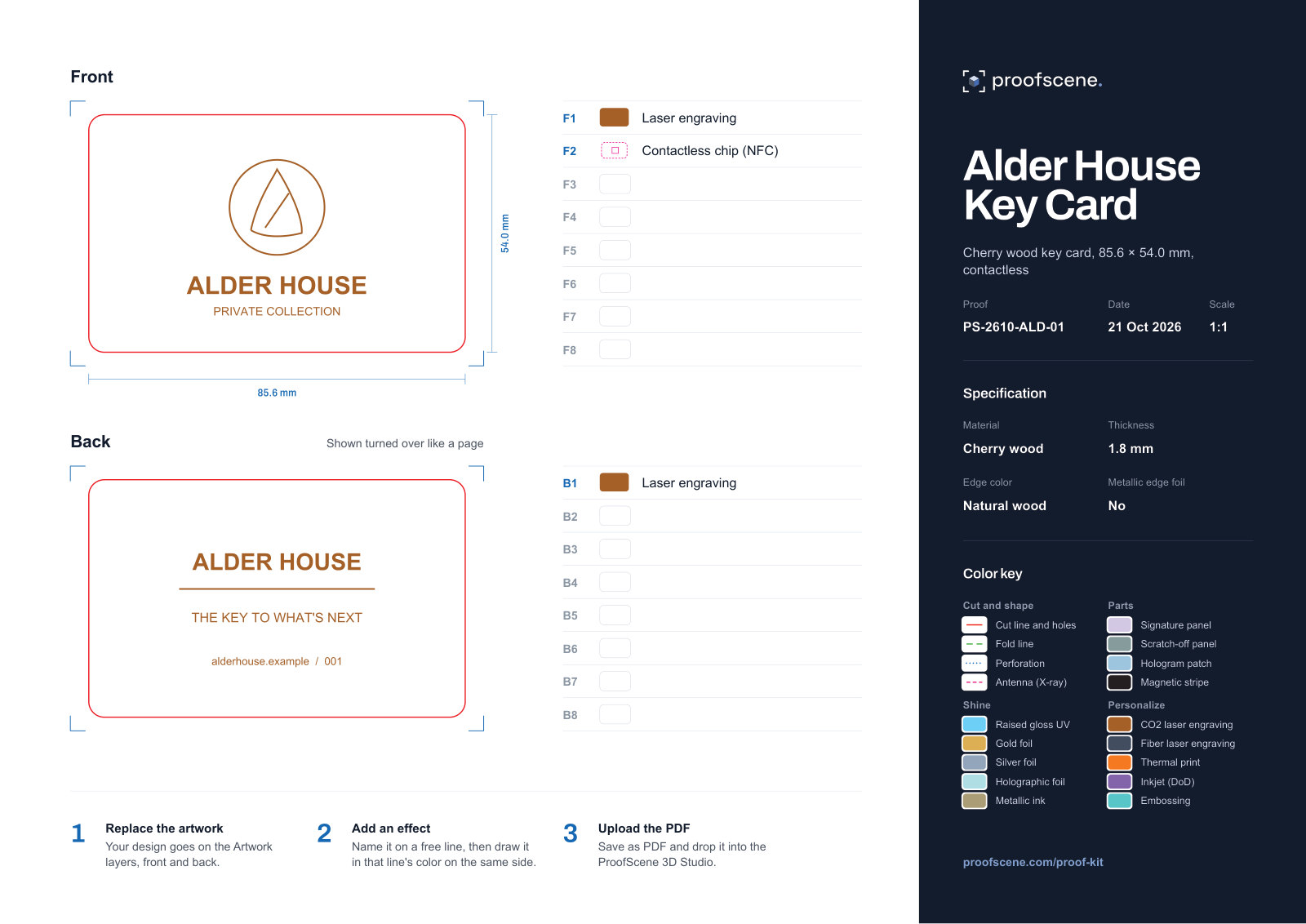

05/19Laser-engraved wood card with a payment chip inside

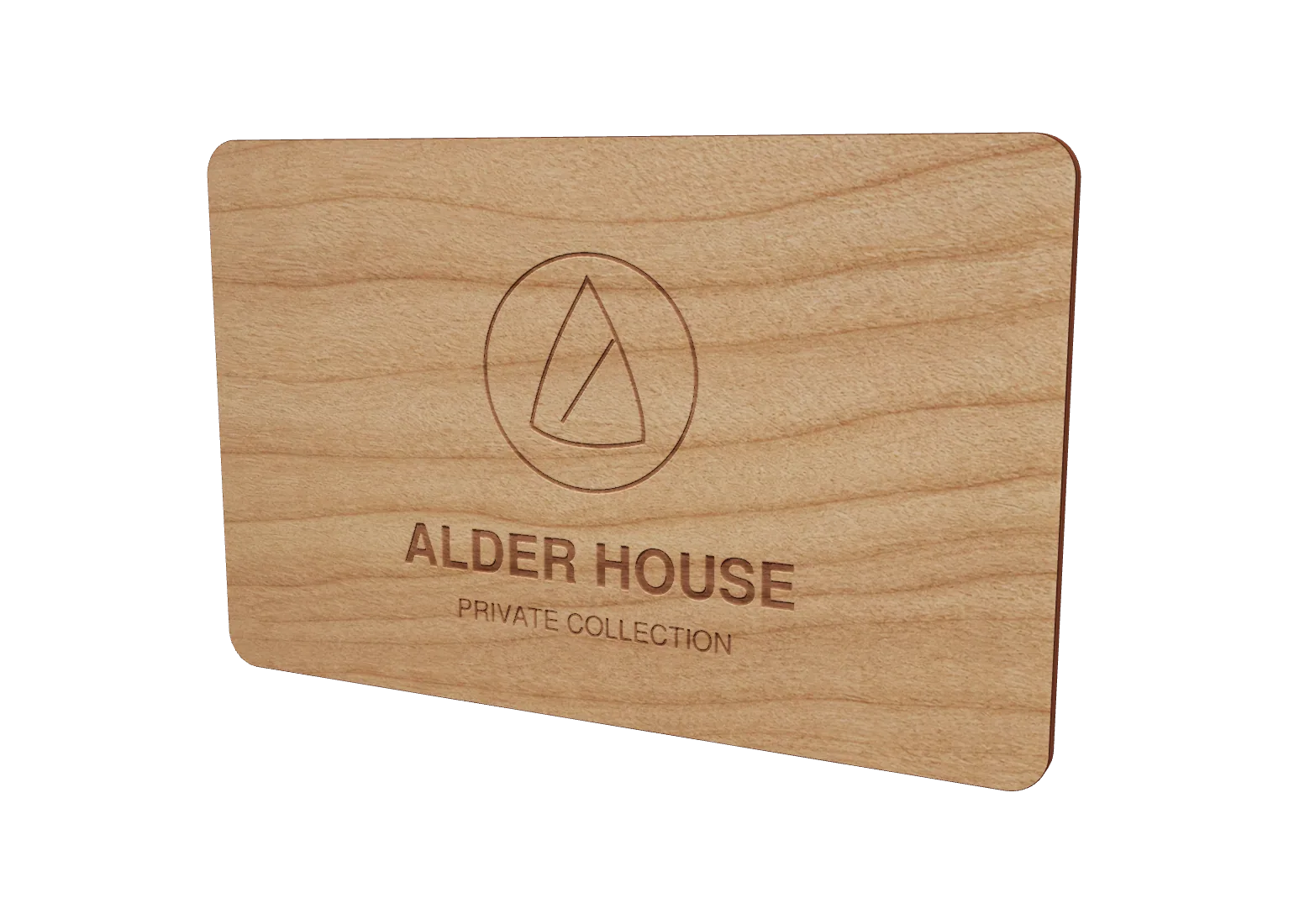

Alder House cherry wood key card
Real cherry grain with the engraving cut into it, not painted on. X-ray shows the payment chip and its antenna sealed in the cavity.
- Wood
- Cherry, 1.8 mm
- Inlay
- Genus 1.3 payment chip, 17.5 x 13 mm
- Process
- Laser engraved, both faces

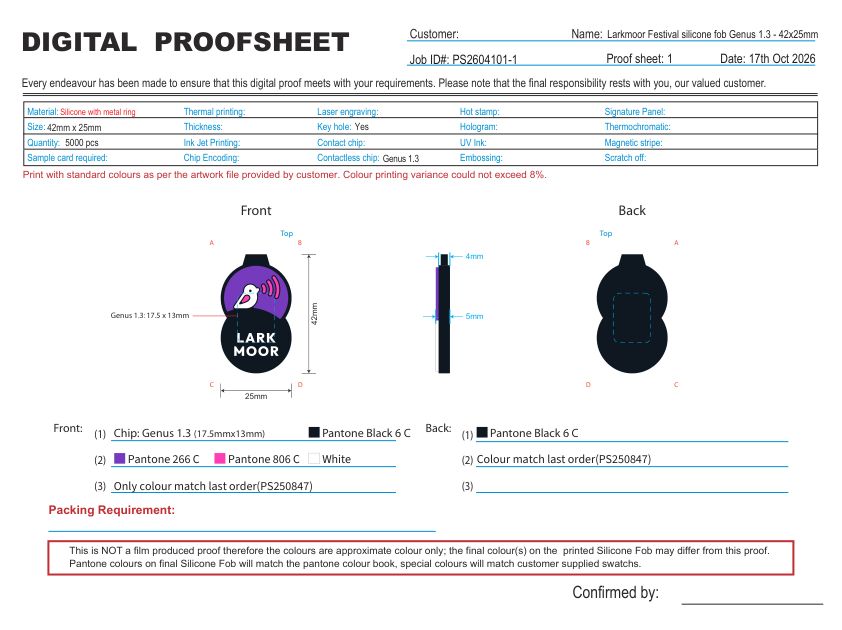

06/19Molded silicone tap-to-pay keyfob

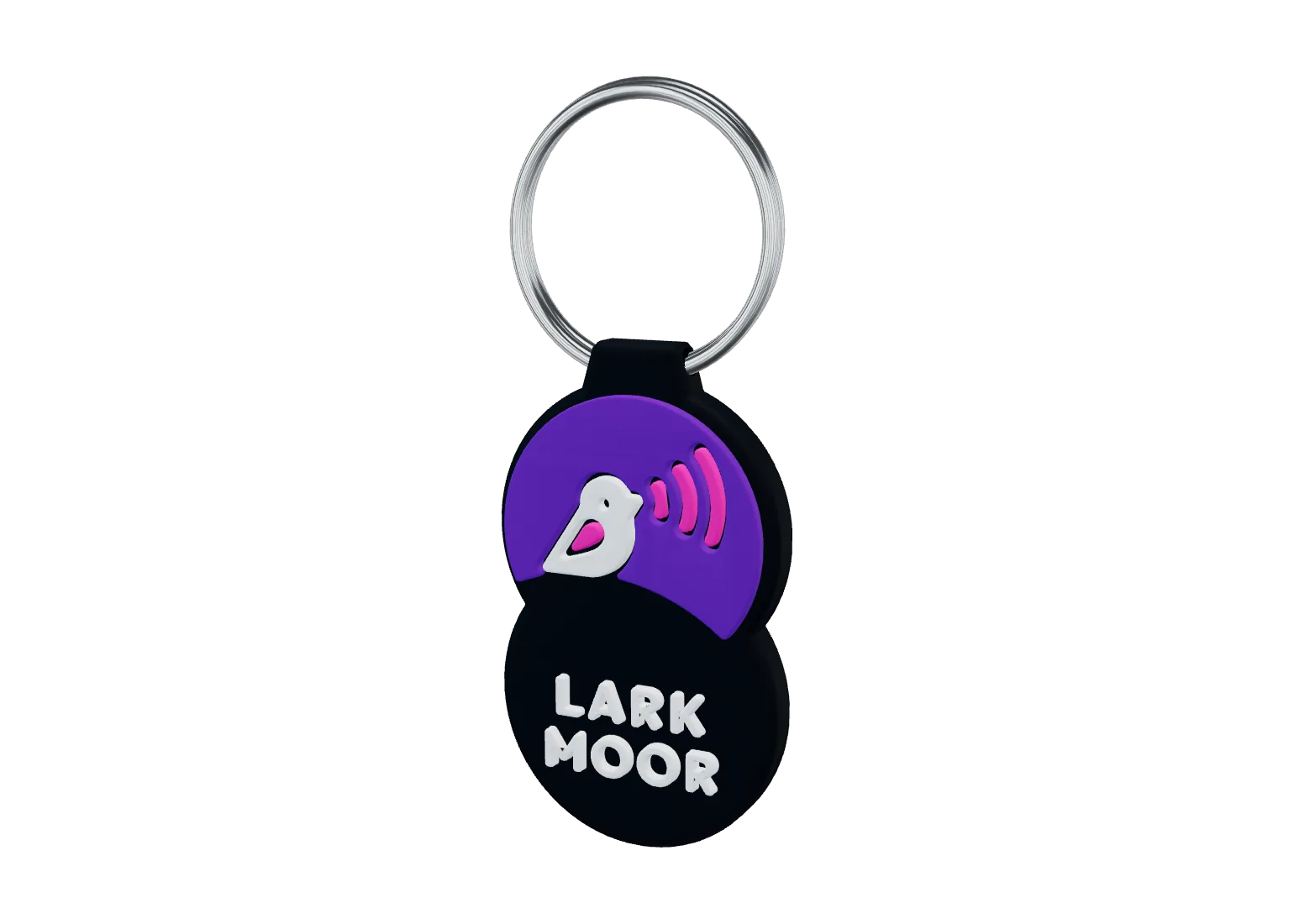

Larkmoor Festival payment fob
A tap-to-pay keyfob for a moorland music festival, molded in black silicone with its songbird logo raised 1 mm in violet, neon pink and white. Switch on X-ray to see the payment chip sealed inside.
- Material
- Molded silicone, 5 mm
- Colors
- Three Pantones, raised 1 mm
- Inside
- Genus 1.3 payment chip in a sealed tag
- Ring
- Steel ring through the tab

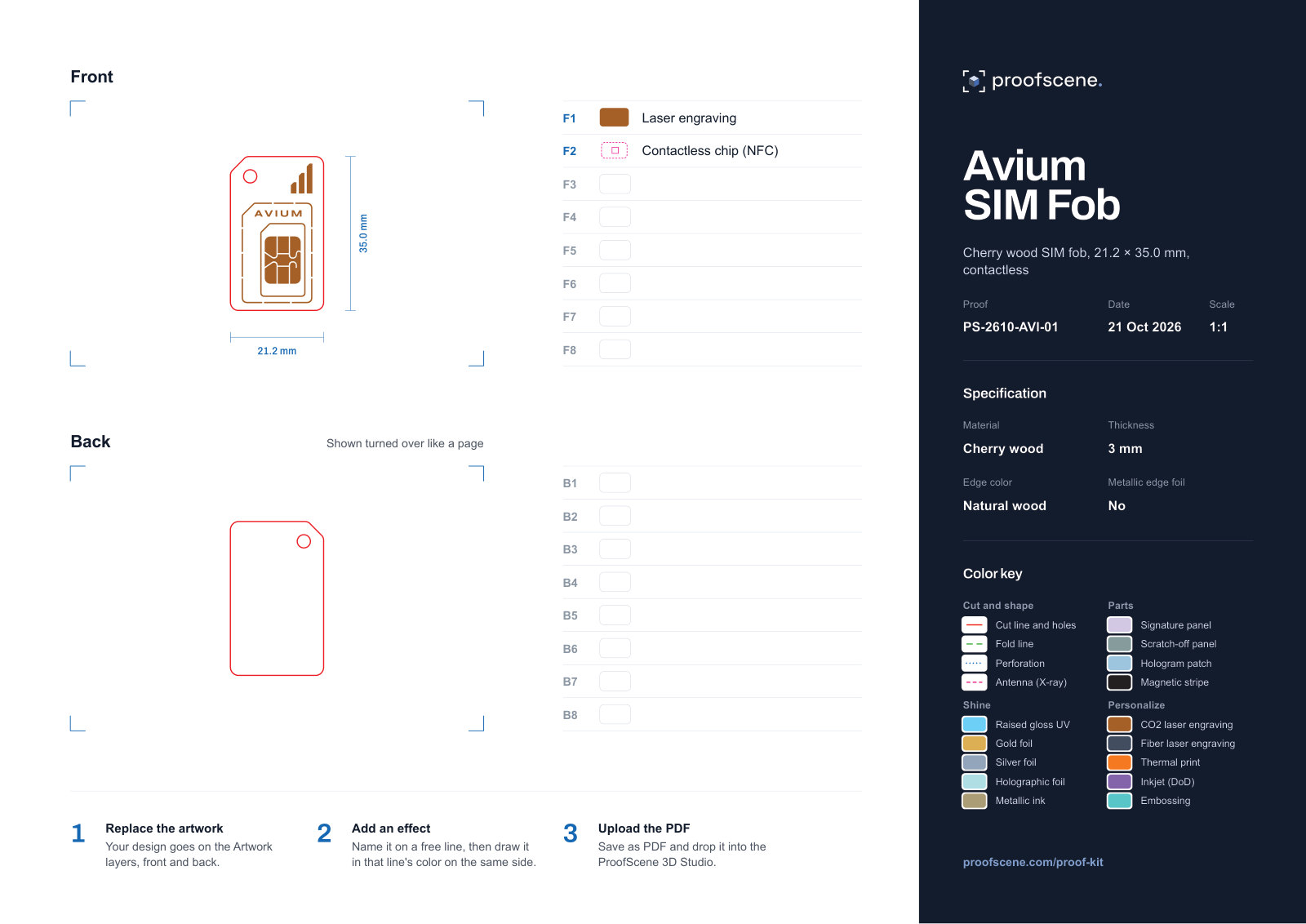

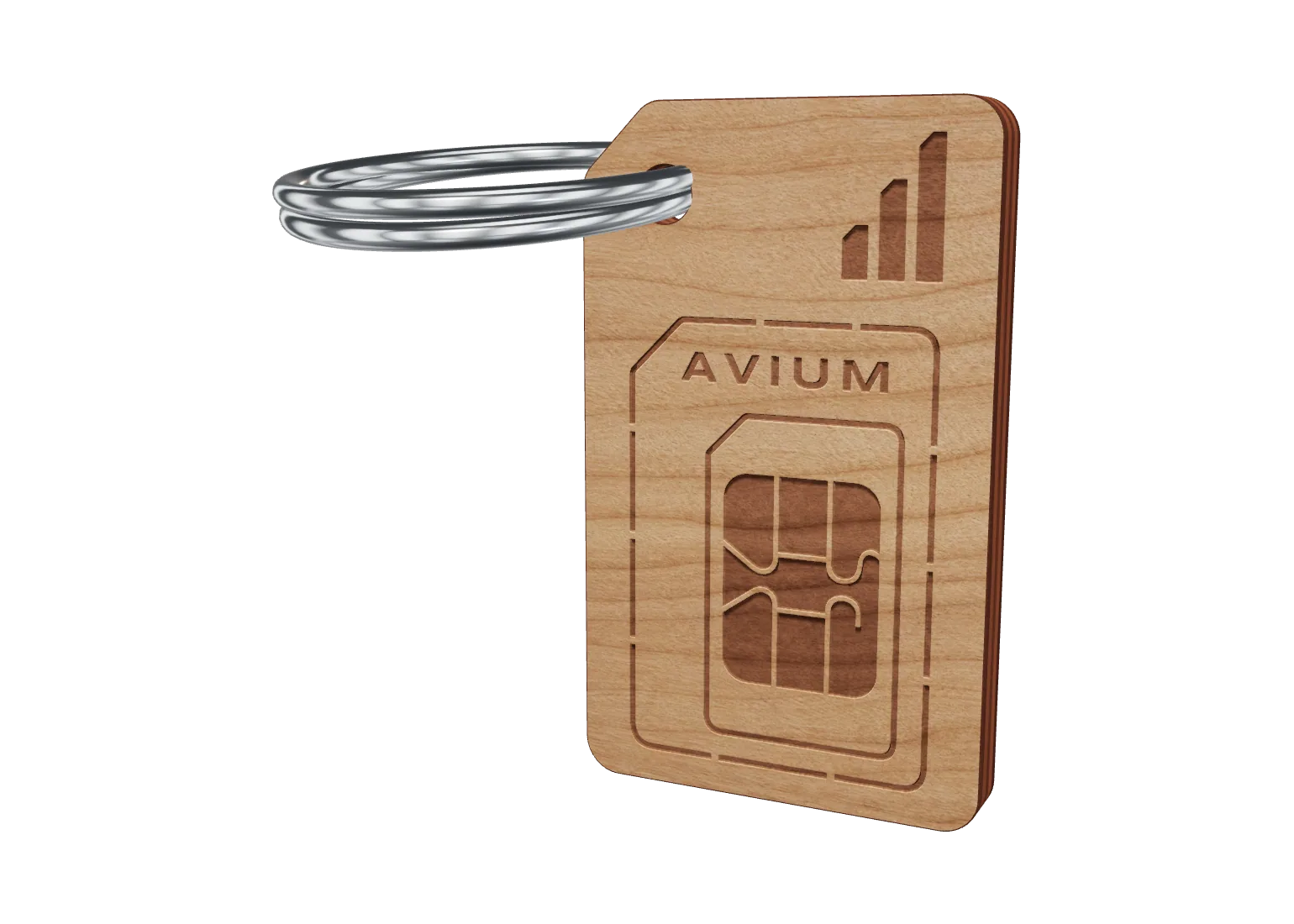

07/19Laser-engraved cherry keyfob with a payment chip inside
Avium cherry wood SIM fob
A cherry wood keyfob cut to the shape of a SIM card, with its plug outlines, chip contacts and wing logo laser engraved into the grain. X-ray it to find the payment chip sealed inside.
- Wood
- Cherry, 3.0 mm
- Shape
- SIM card, 35 x 21.2 mm
- Inlay
- Genus 1.3 payment chip, 17.5 x 13 mm
- Process
- Laser engraved front

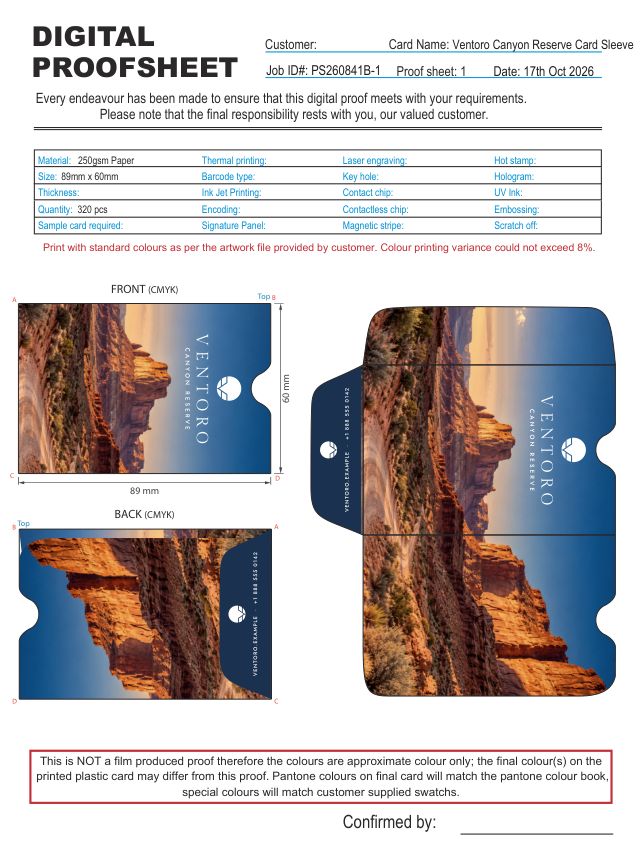

08/19Key-card sleeve with its matching RFID card

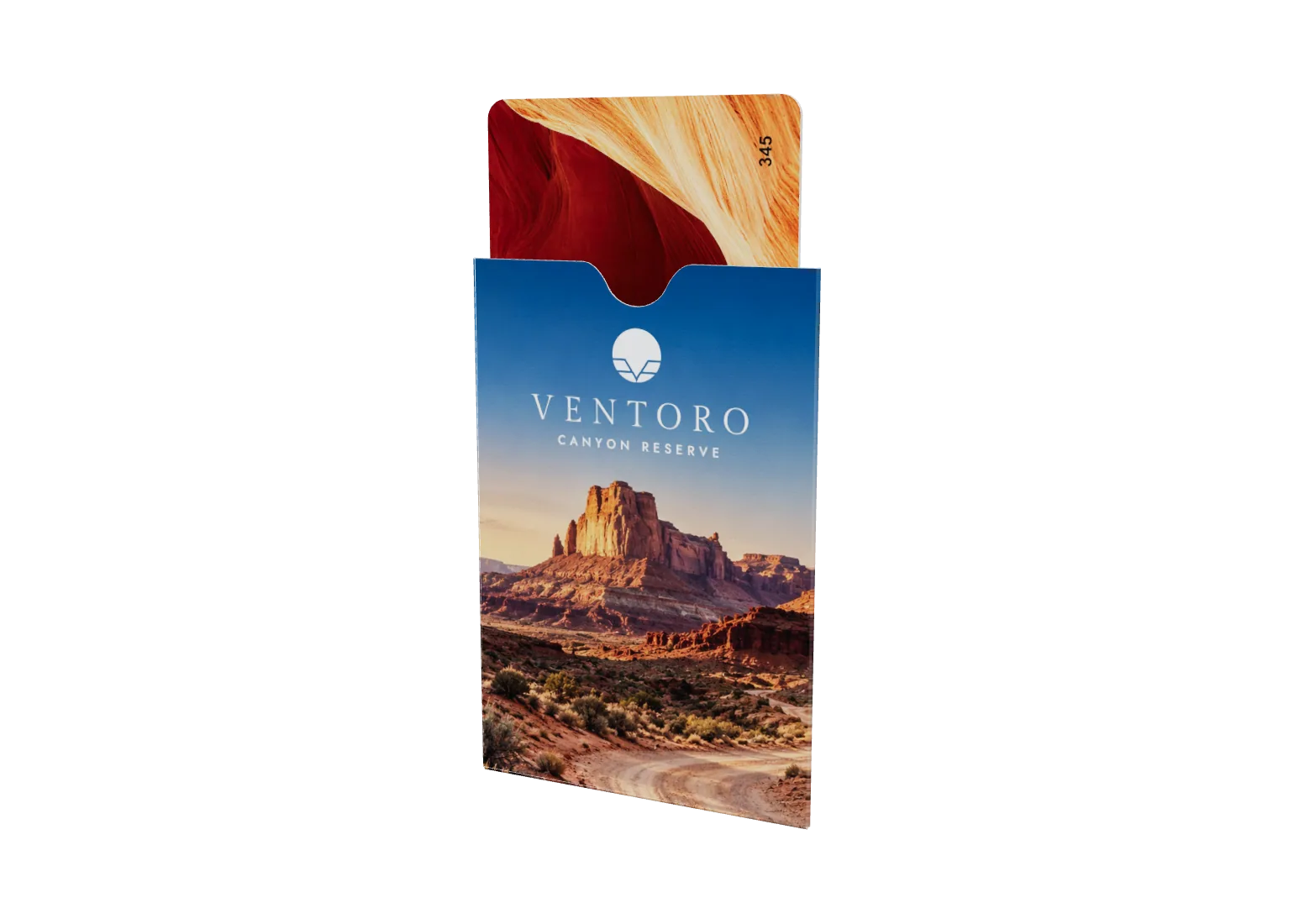

Ventoro key sleeve and card
A U-fold paper key sleeve printed edge to edge with a golden-hour canyon, folded in 3D from the die on its proof sheet. Slide the real gloss key card in and out, see through the paper, or open it flat.
- Sleeve
- 250 gsm coated paper, 60 x 89 mm
- Card
- CR80 PVC, gloss, DESFire EV1
- Fold
- U-fold from the die on the sheet

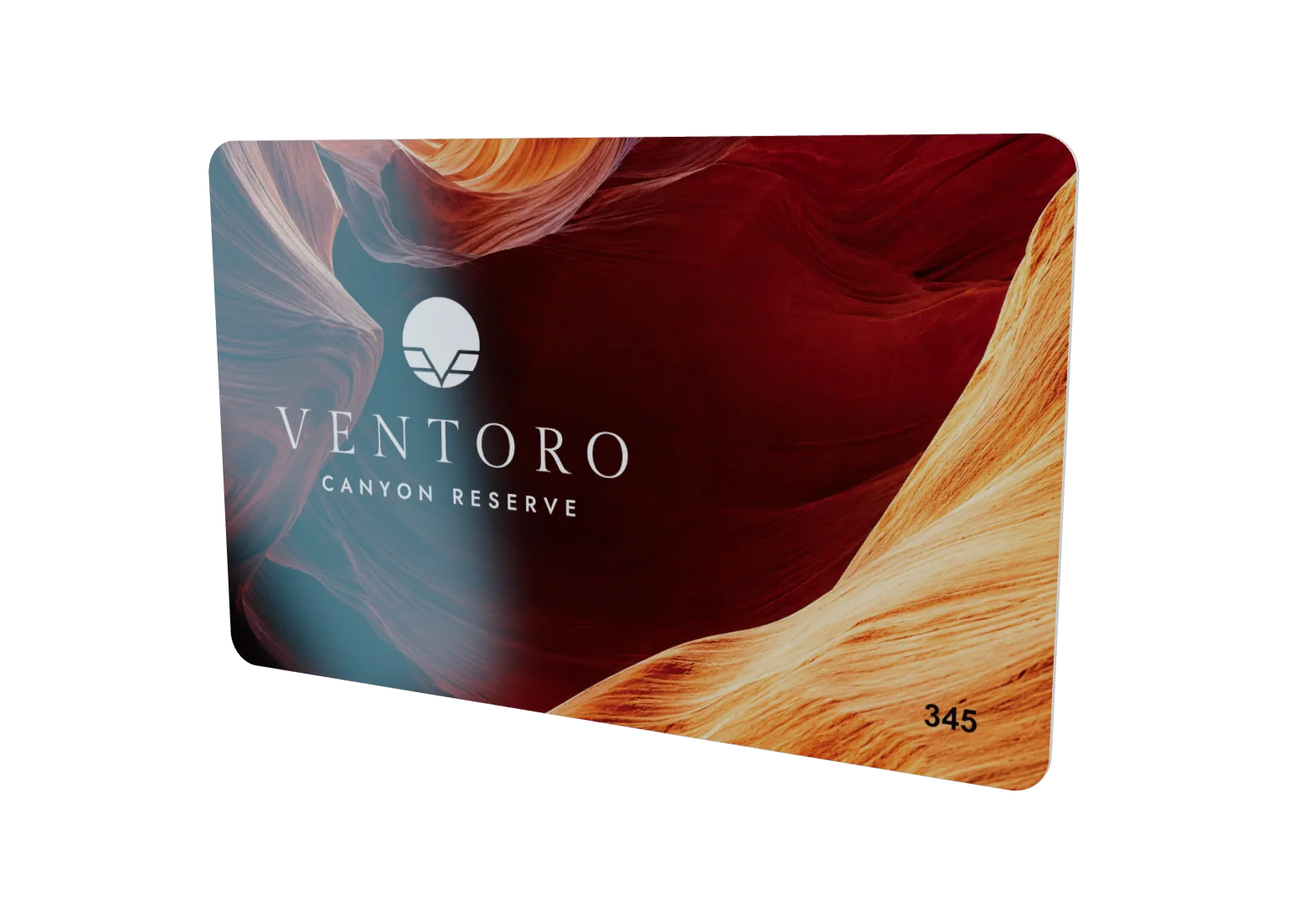

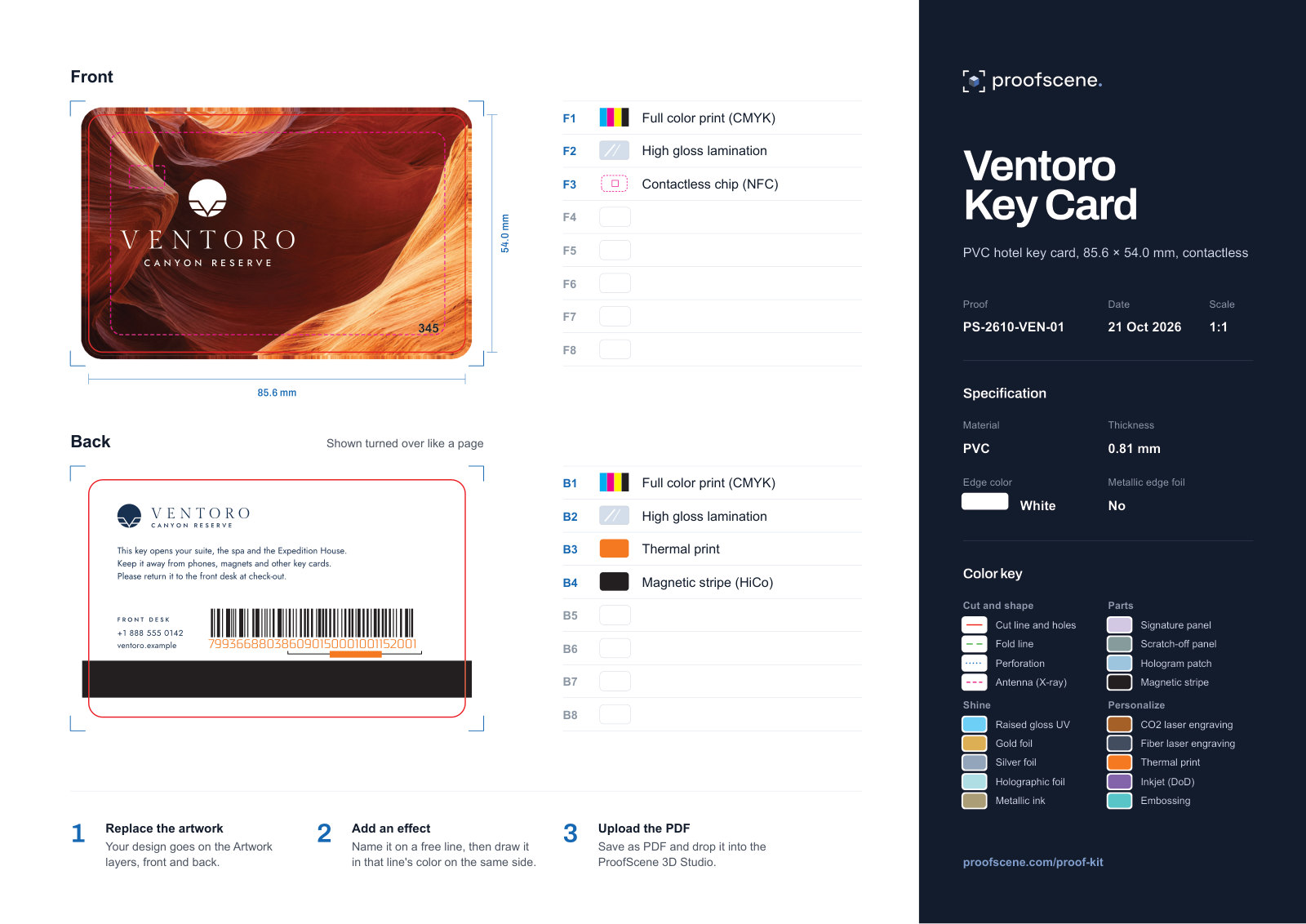

09/19Gloss PVC key card with chip and magstripe
Ventoro canyon key card
Slot-canyon artwork on gloss PVC with a thermal room number, and a HiCo magstripe and barcode on the back. X-ray it to see the DESFire EV1 chip and its etched antenna.
- Card
- CR80 PVC, 0.81 mm, gloss
- Chip
- MIFARE DESFire EV1 256
- Back
- HiCo magstripe, thermal barcode

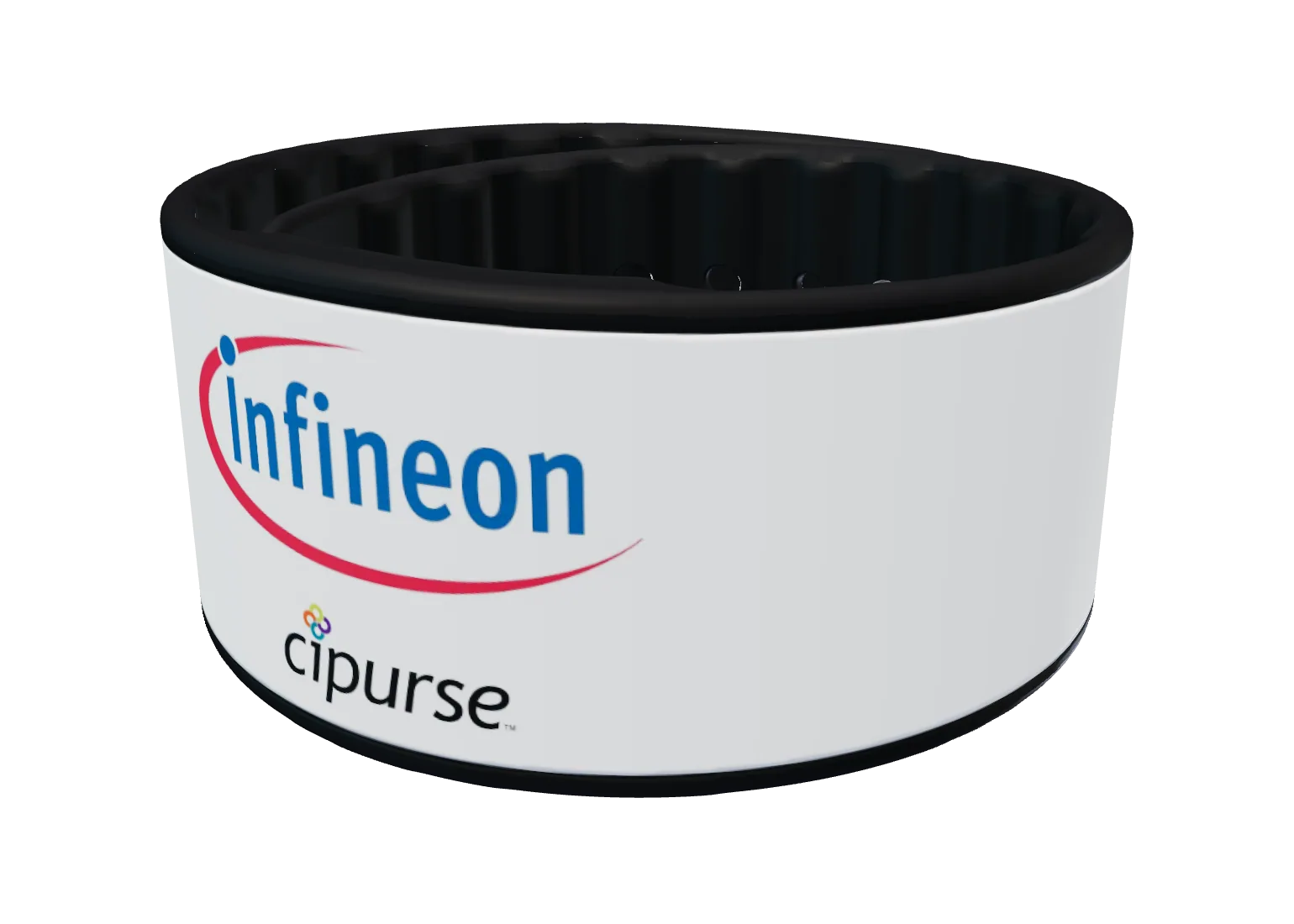

10/19Adjustable silicone band with an Infineon SPA

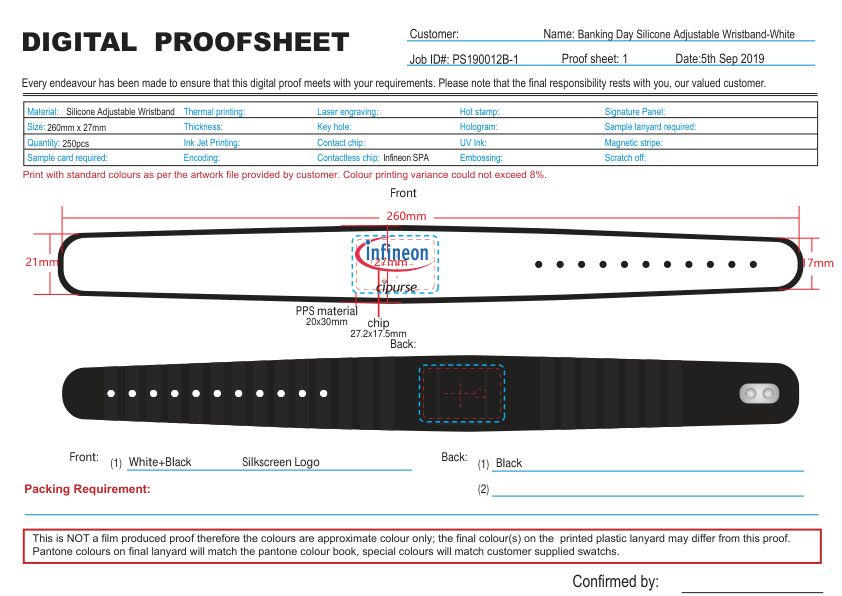

Banking Day payment wristband
Molded silicone with a printed white face and two metal studs. X-ray it to find the Infineon SPA payment module sealed in a black tag, then open the band flat.
- Band
- Silicone, 262 x 27 mm
- Inlay
- Infineon SPA in a sealed tag
- Closure
- Two metal studs

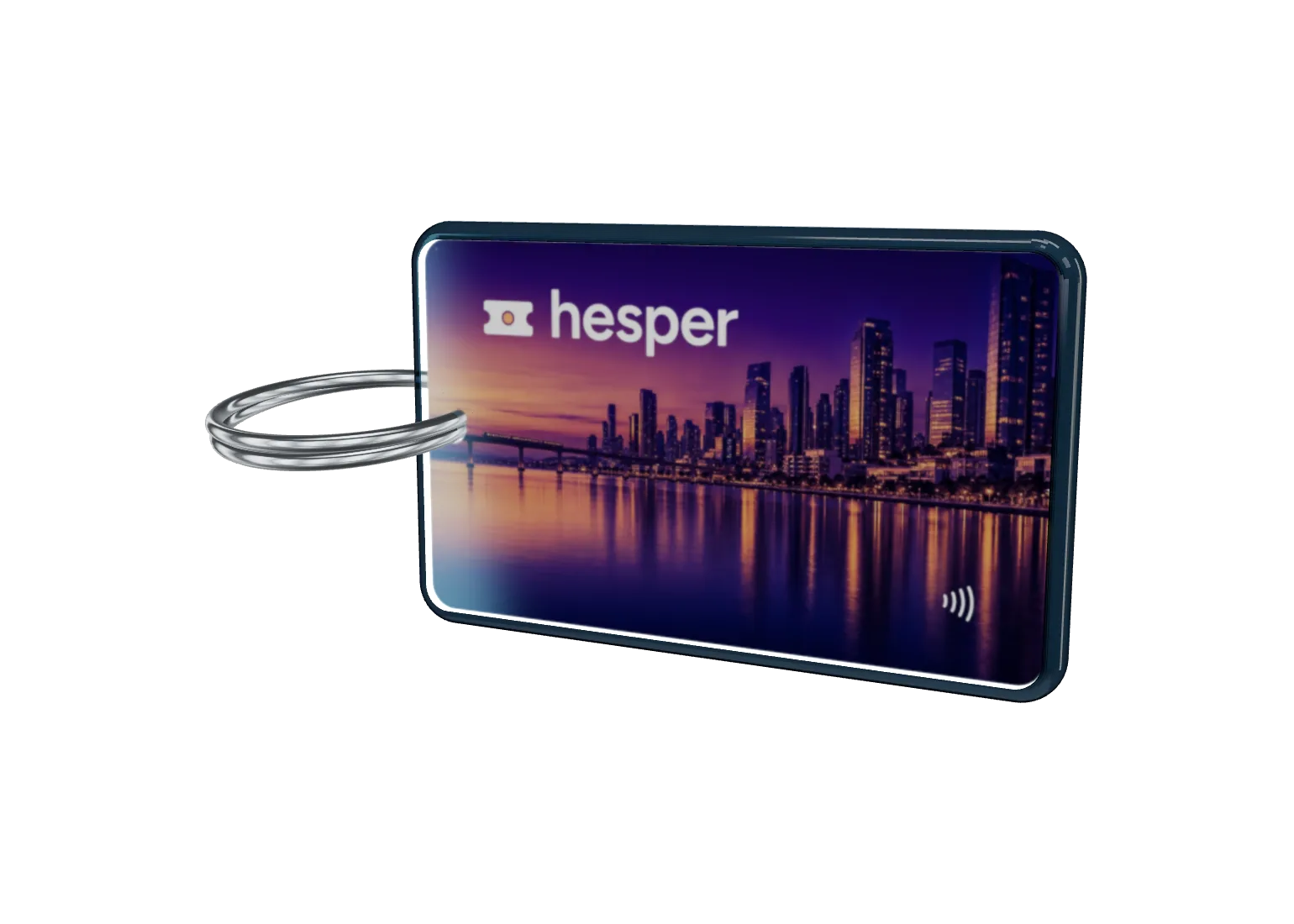

11/19Crystal epoxy keyfob with an Infineon SPA inside

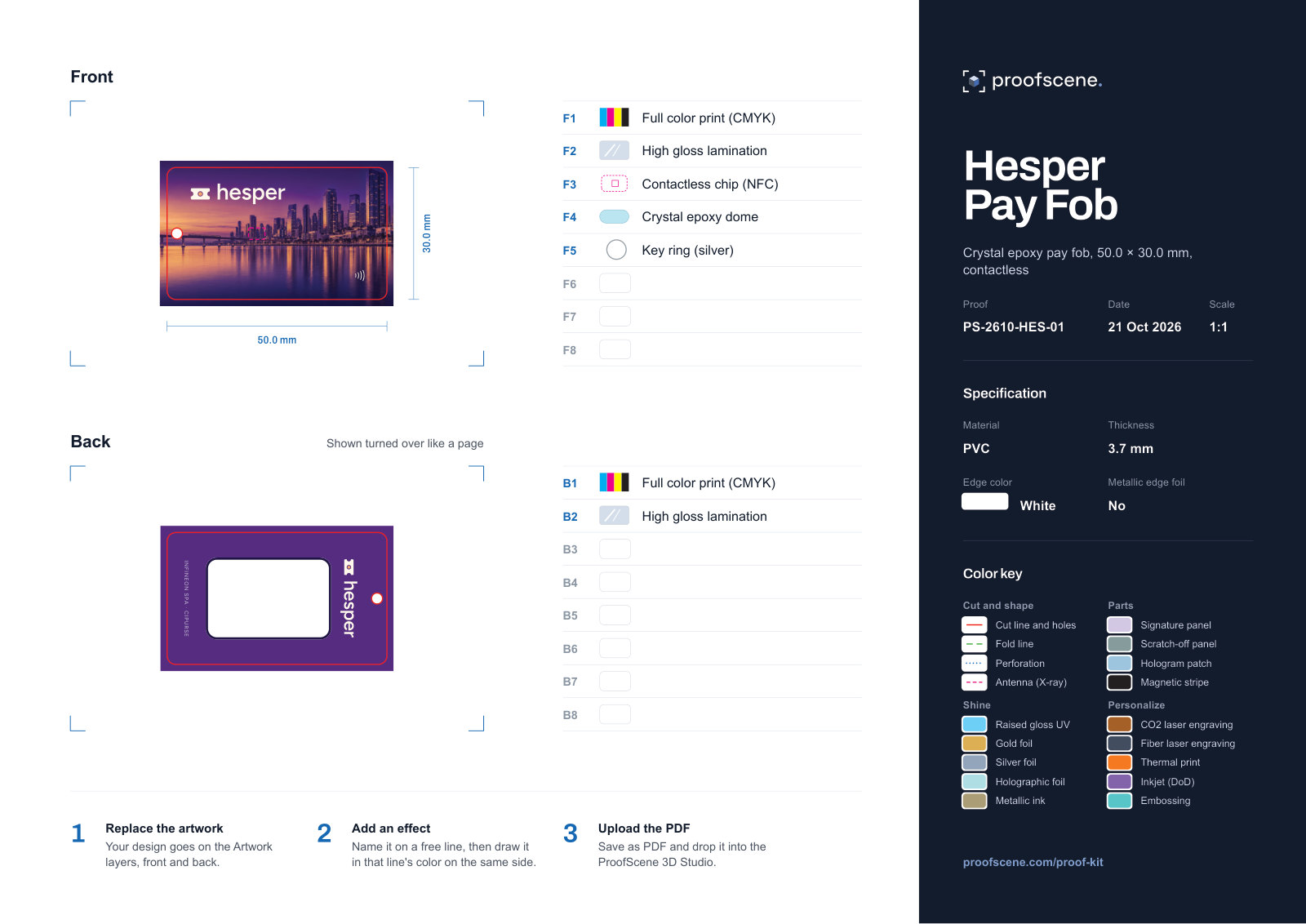

Hesper crystal pay fob
A tap-to-pay keyfob for a city transit wallet, cast in clear crystal epoxy with Infineon's SPA payment module set flush in its transparent back. Turn it over to see the silver antenna through the dome, then X-ray the board.
- Size
- 50 x 30 x 3.7 mm with crystal
- Build
- 1.3 mm PVC in crystal epoxy
- Chip
- Infineon SPA, CIPURSE
- Ring
- Metal key ring
12/19Peel-open hanging pack with the real card inside

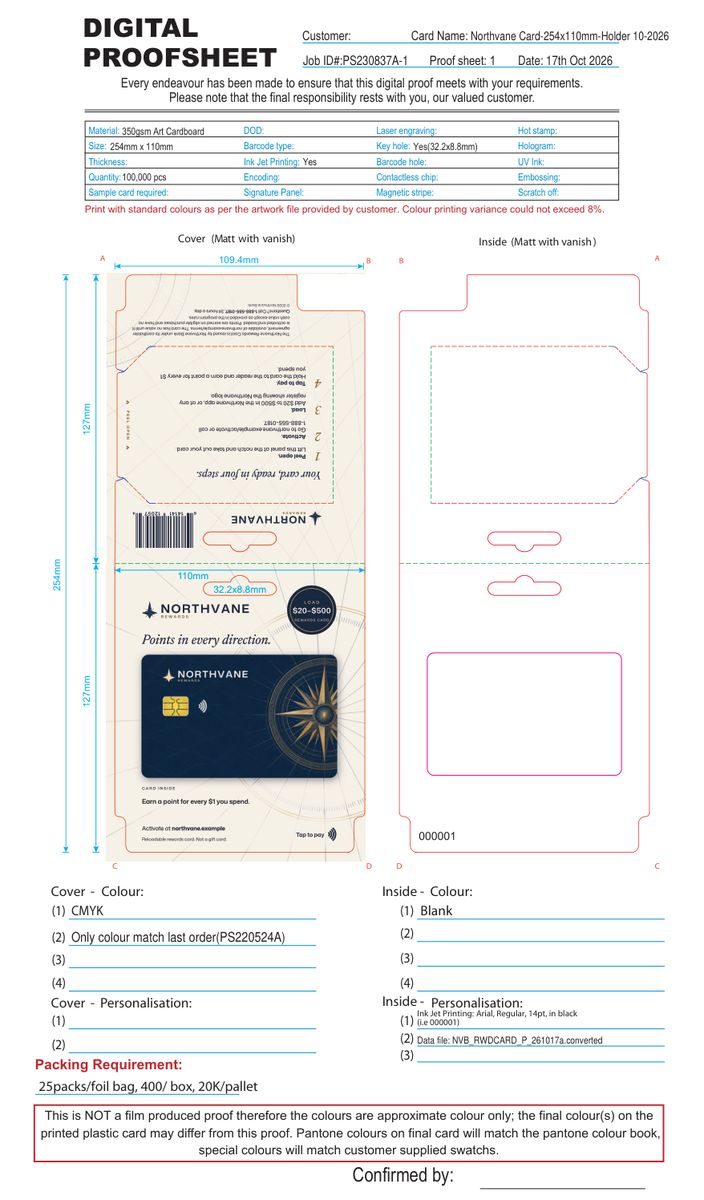

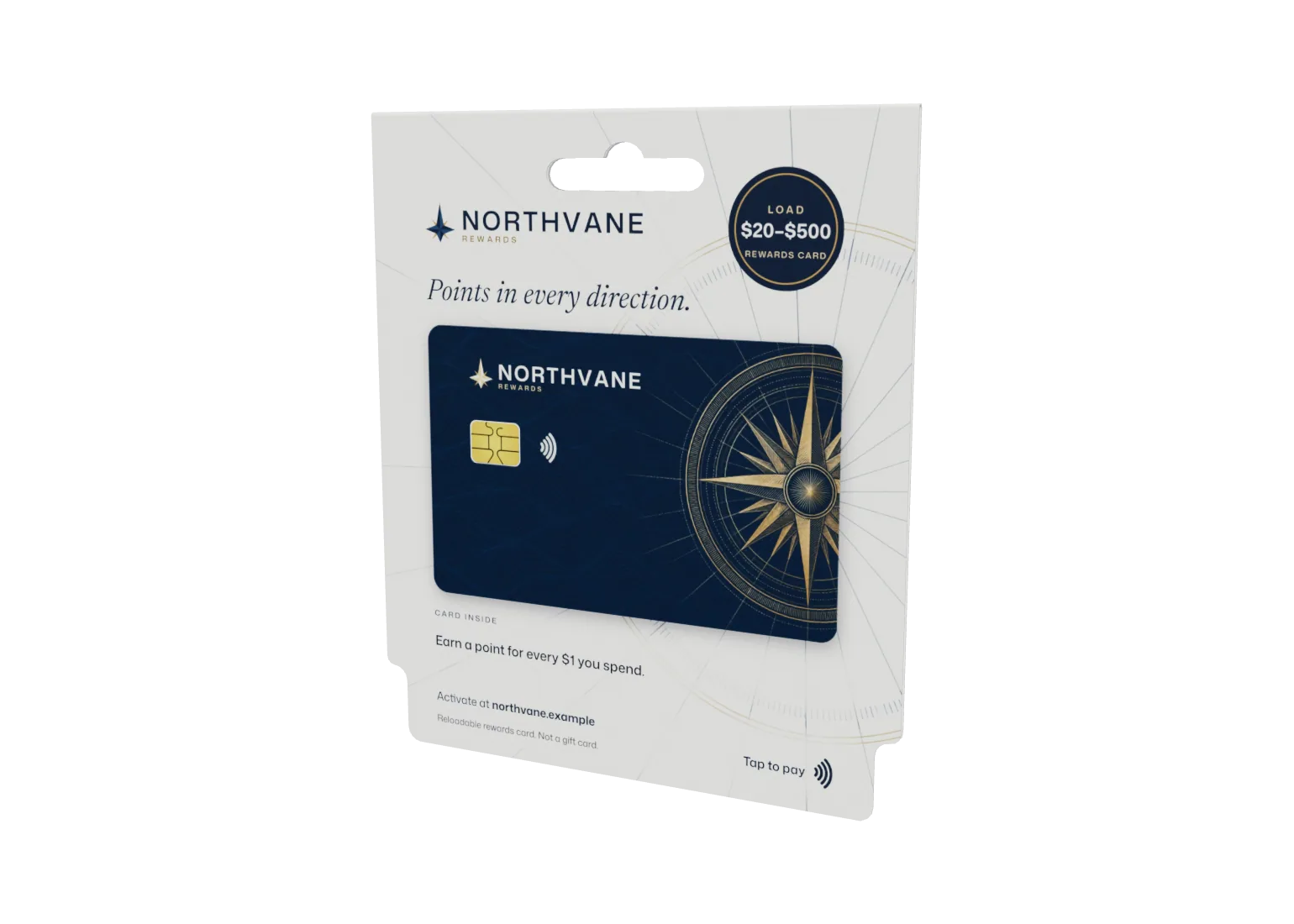

Northvane rewards card pack
A hanging retail pack for a bank rewards card, folded from one sheet of board with its hang hole and ink-jet serial. Peel the perforated back open and the real chip card is there, glued exactly where the proof puts it.
- Format
- 110 x 127 mm folded, 254 x 110 mm flat
- Stock
- 350 gsm art board, matt varnish
- Opens
- Perforated back panel peels open
- Card
- CR80 PVC, MIFARE 1K, SLE5542 chip, HiCo stripe

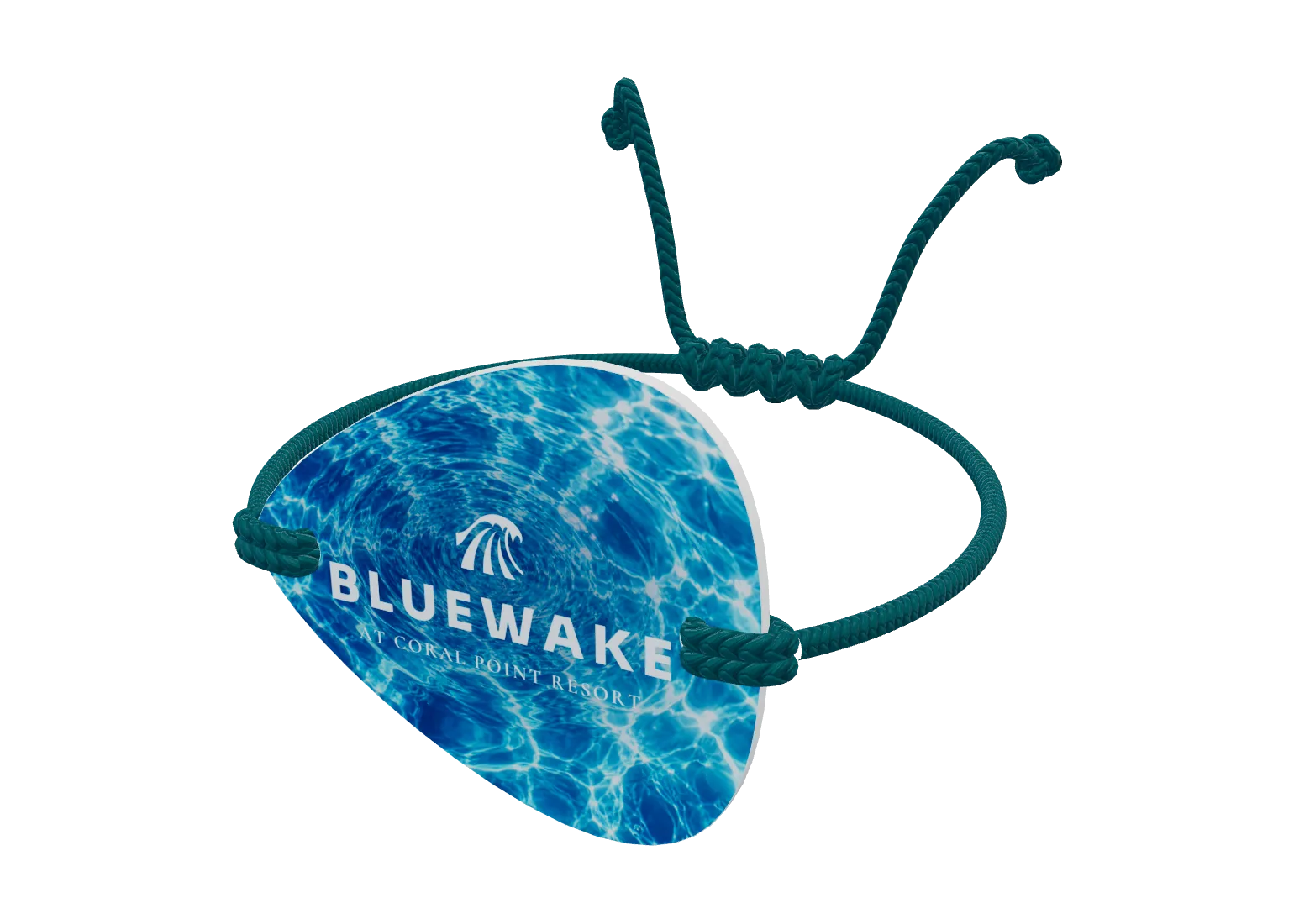

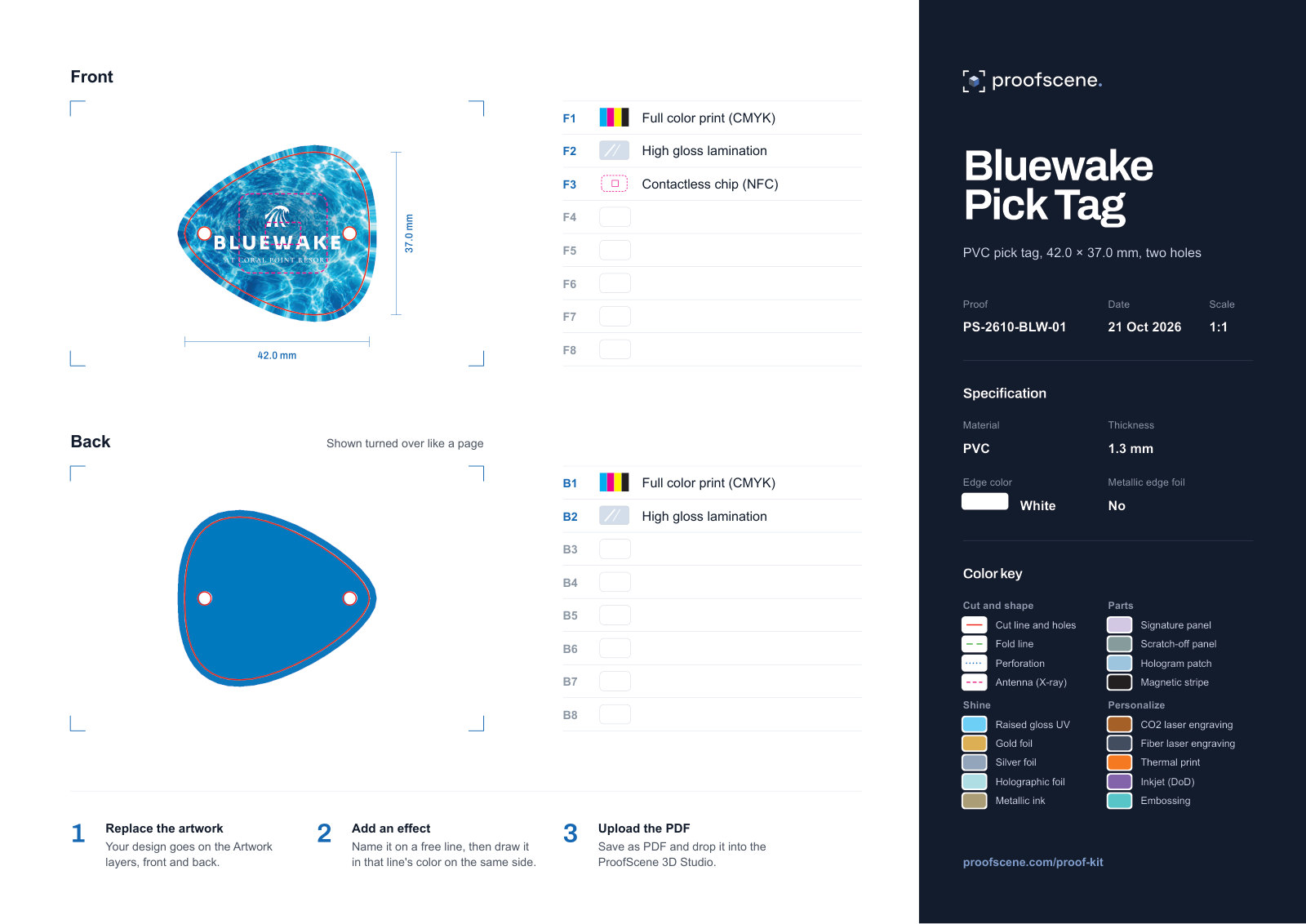

13/19Pick-shaped PVC tag on a braided cord
Bluewake pearl pick tag
A pearlescent guitar-pick tag with 3 mm cord holes, threaded on an adjustable braided nylon band. X-ray it to find the MIFARE Classic chip and its etched antenna.
- Tag
- PVC, 1.3 mm, pearlescent base
- Cord
- Braided nylon, adjustable
- Chip
- MIFARE Classic 1K

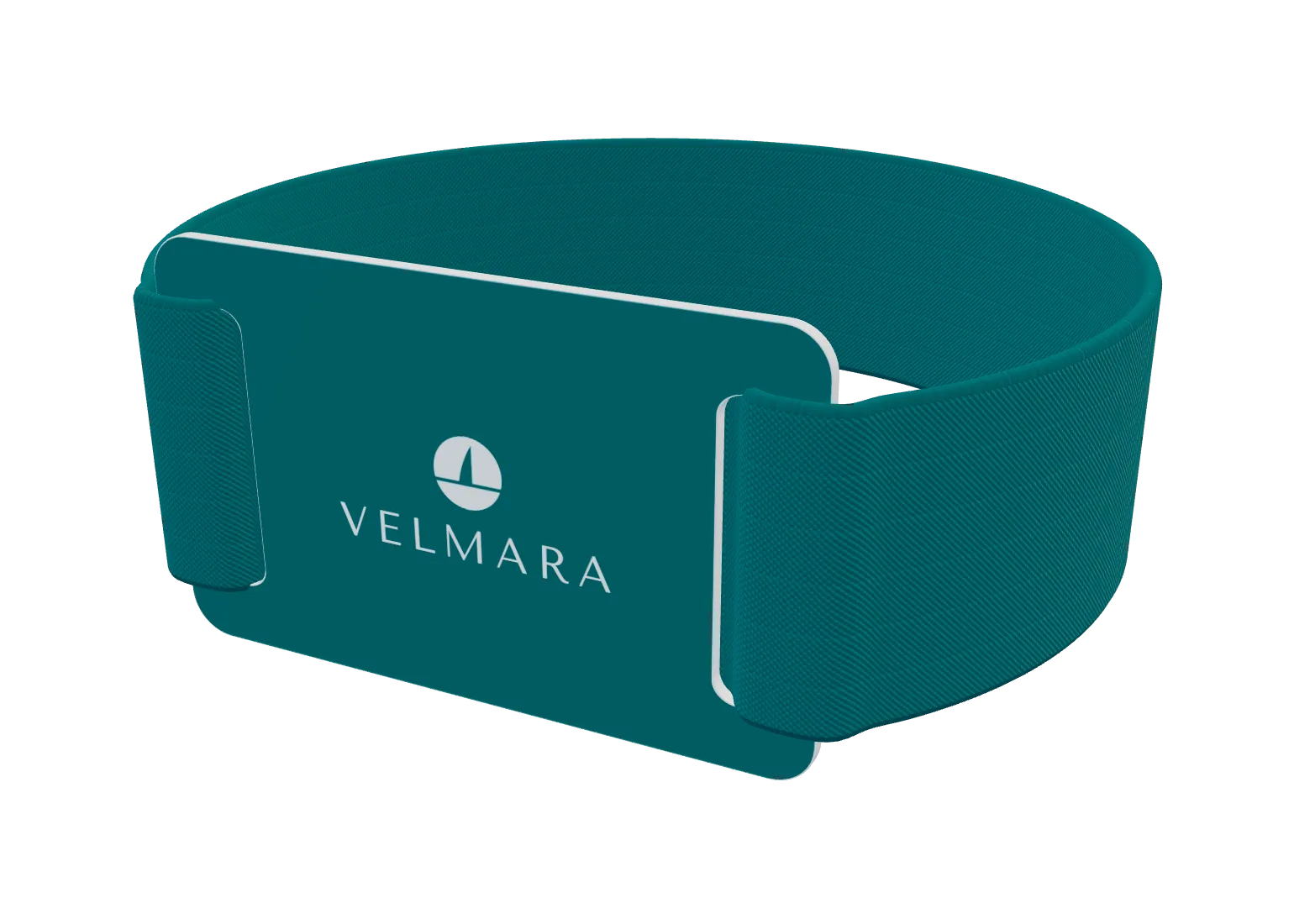

14/19PVC RFID tag on a printed elastic band

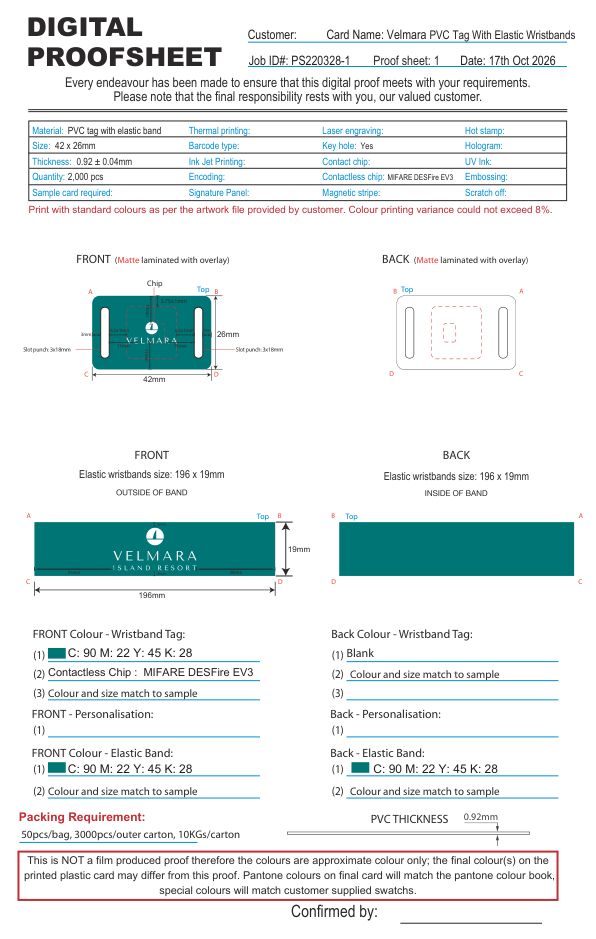

Velmara room key wristband
A resort room key and cashless pass: a MIFARE DESFire EV3 chip sealed in a 42 x 26 mm PVC tag that rides on a printed elastic band. Turn it round to read the band, then X-ray the tag.
- Tag
- PVC, 42 x 26 x 0.92 mm
- Band
- Elastic, 196 x 19 mm, printed
- Chip
- MIFARE DESFire EV3
15/19Peel-open carrier with the SIM card inside

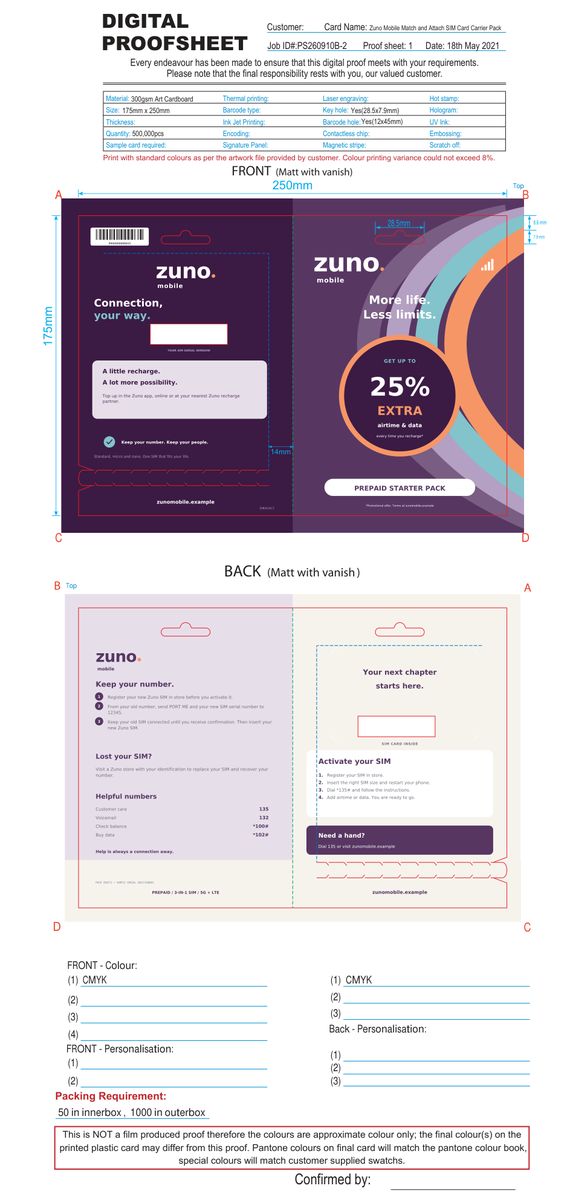

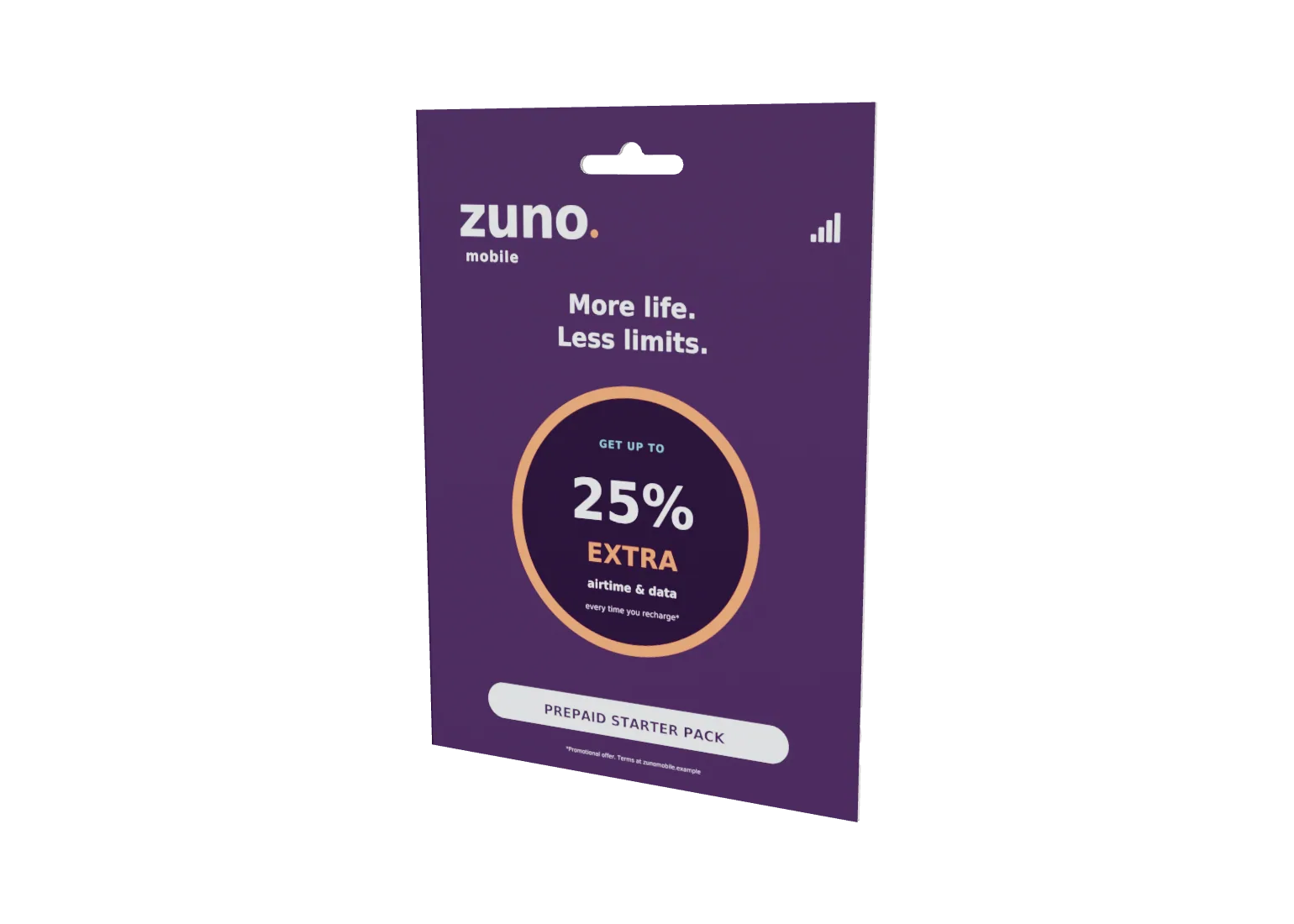

Zuno Mobile SIM starter pack
A prepaid SIM pack with the real punch-out SIM card mounted behind a window. Peel the panel open, see through the carrier, or open the whole sheet flat.
- Stock
- 300 gsm art card
- Card
- 2FF punch-out SIM, glued inside
- Opening
- Two perforations, peel panel

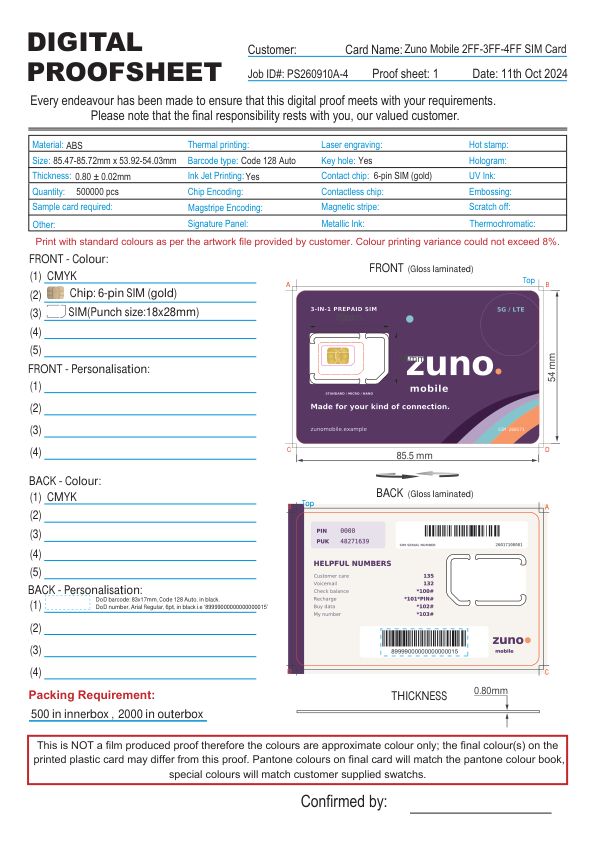

16/192FF, 3FF and 4FF punch-out SIM

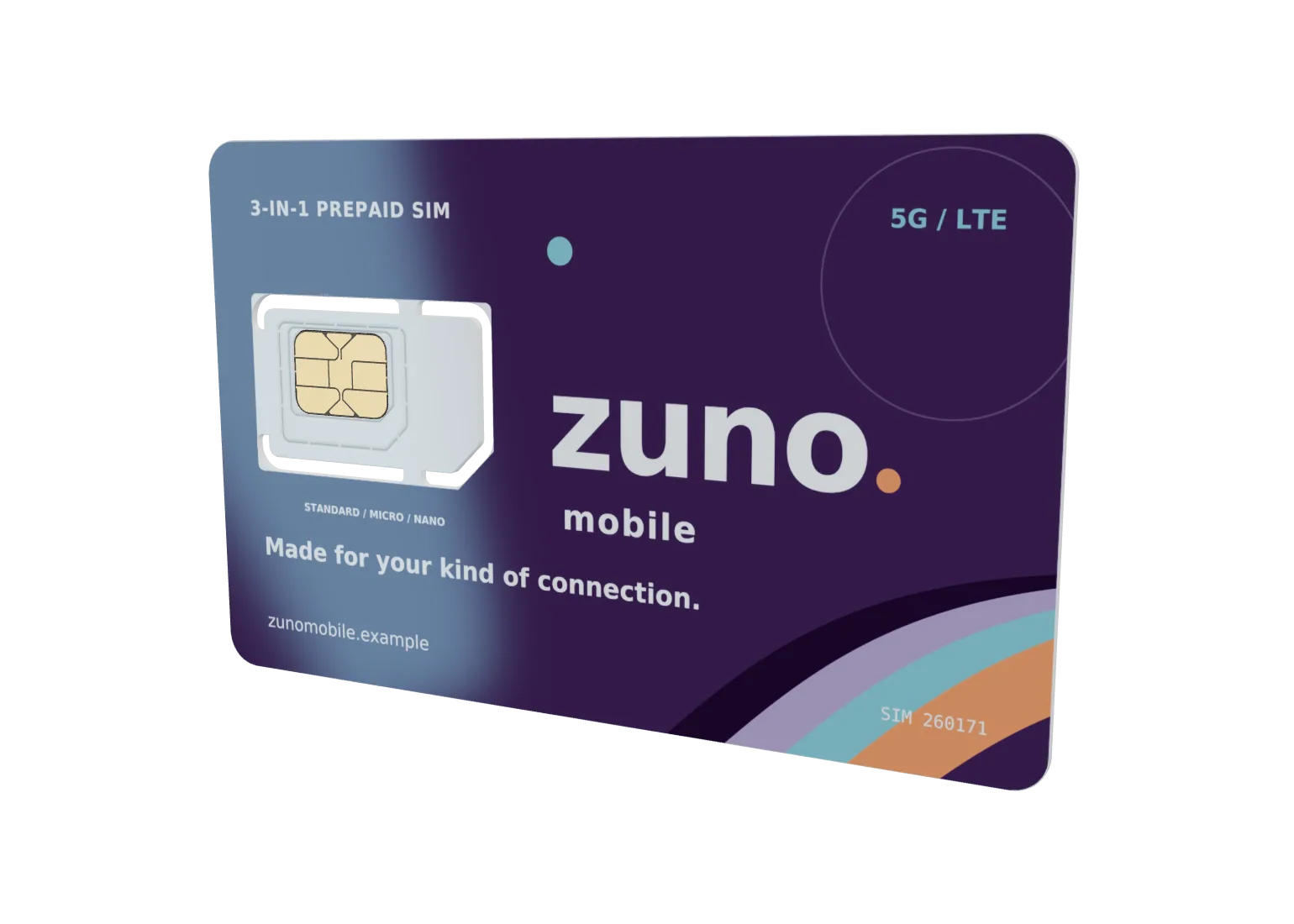

Zuno 3‑in‑1 SIM card
The 2FF plug hangs on bridges in its channel, with the 3FF and 4FF sizes scored inside it around a six-pad gold contact chip. Punch it out.
- Card
- ABS, 0.80 mm
- Chip
- 6-pad gold contact module
- Sizes
- 2FF, 3FF, 4FF

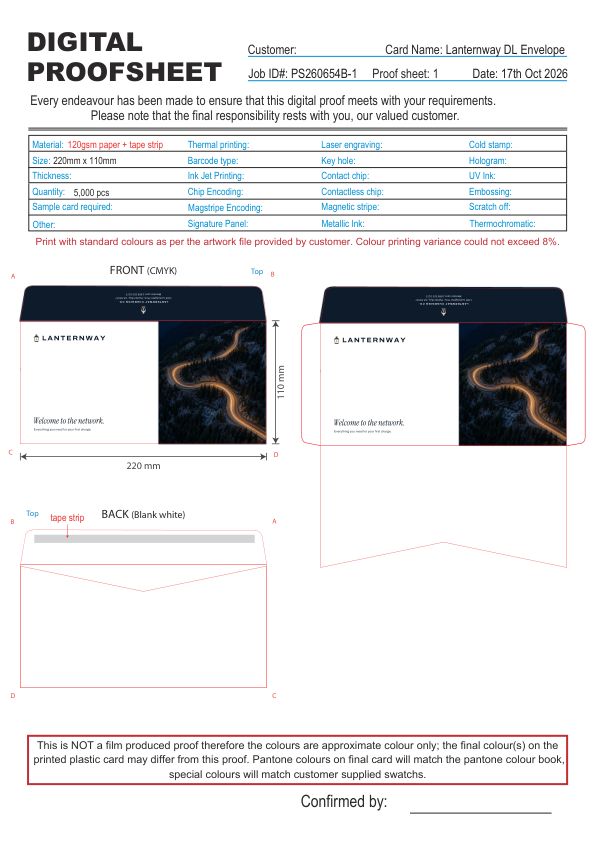

17/19DL envelope with a peel-and-seal flap

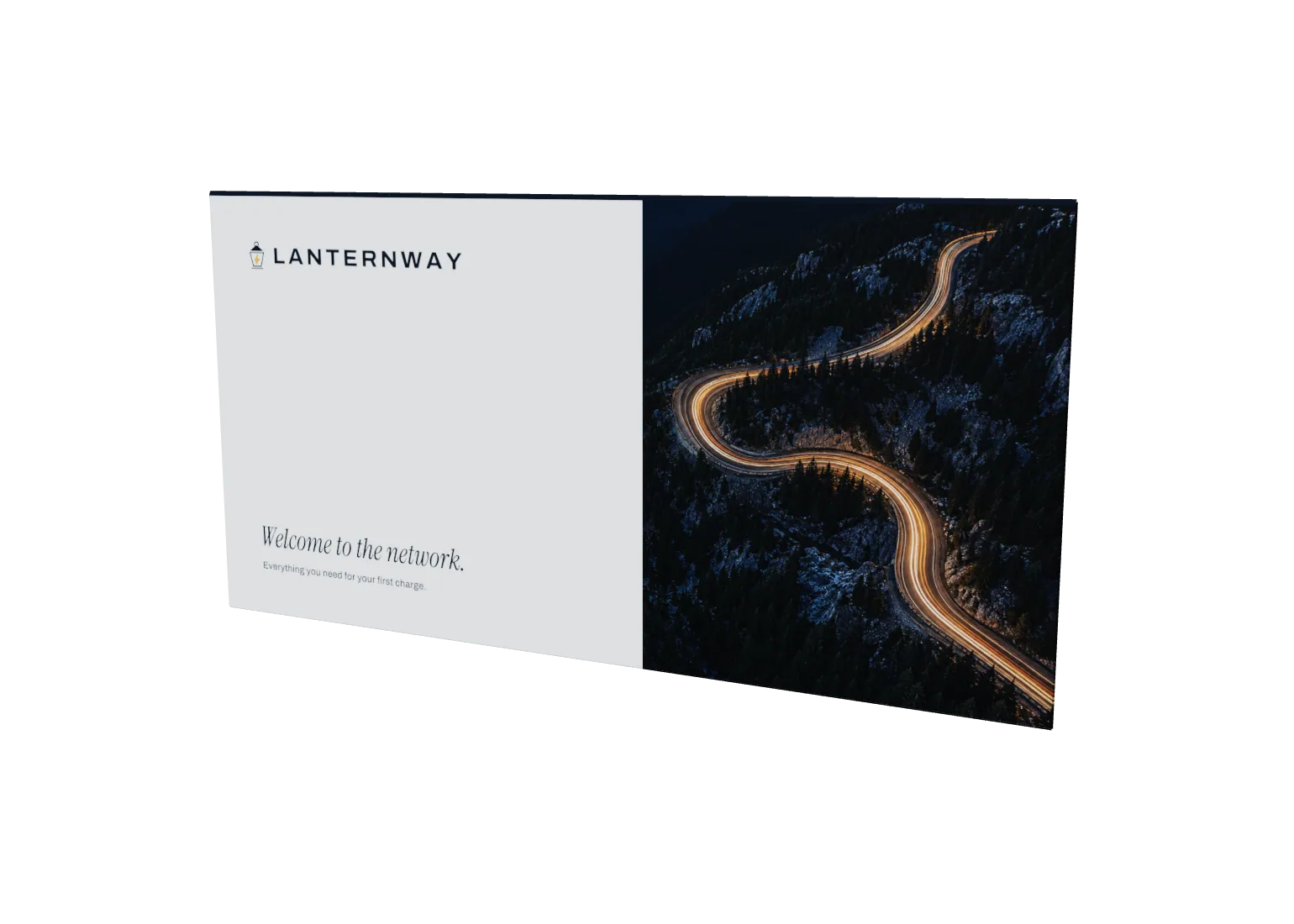

Lanternway welcome envelope
A member welcome envelope with a full-bleed night-road photograph and a lantern-pattern seal flap. Open the flap to find the raised peel-and-seal strip, or lay it flat to see the die-cut blank as printed.
- Size
- DL, 220 x 110 mm
- Stock
- 120 gsm, peel-and-seal tape
- CMYK outside, inside blank

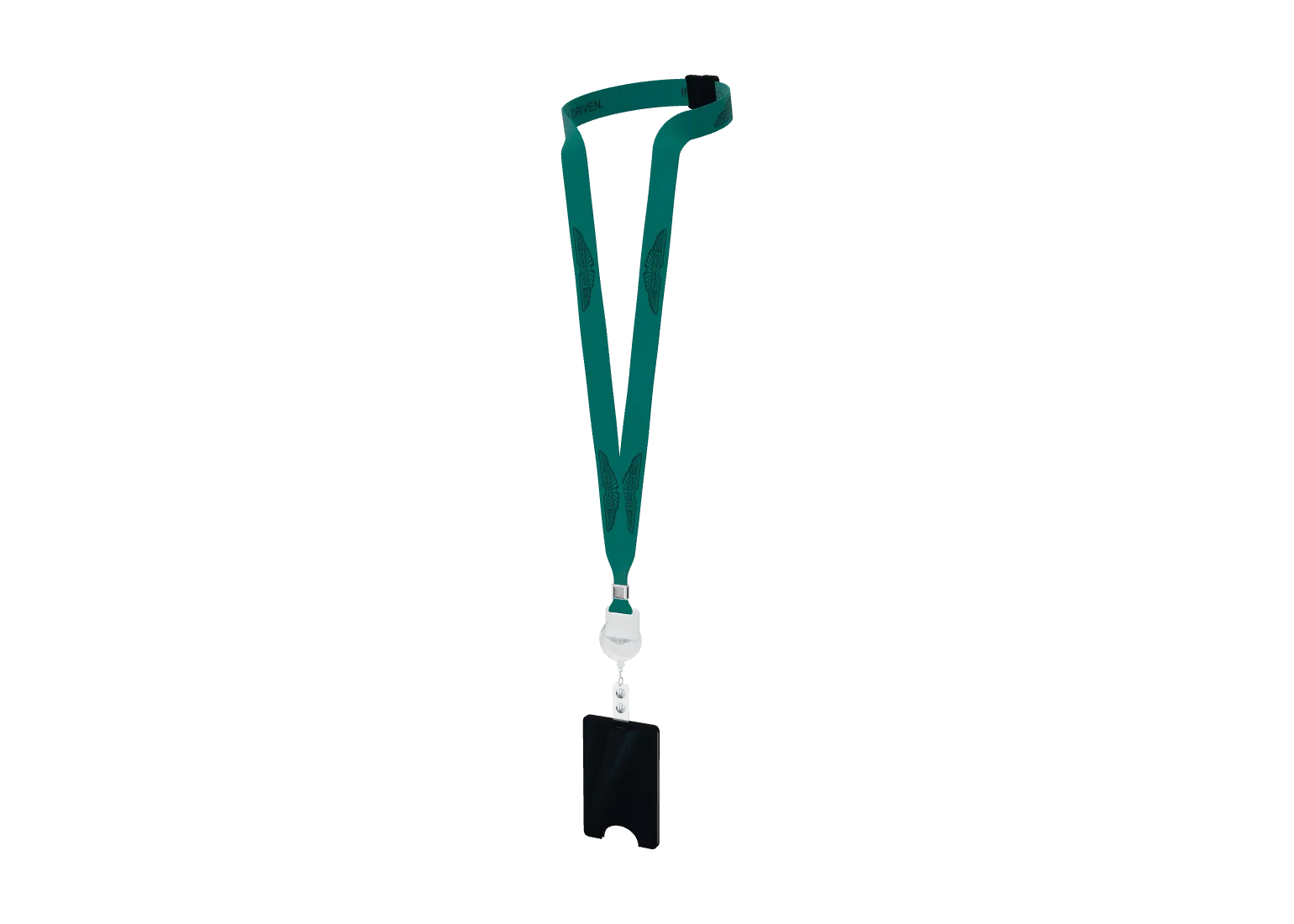

18/1920 x 960 mm polyester lanyard with chrome hardware

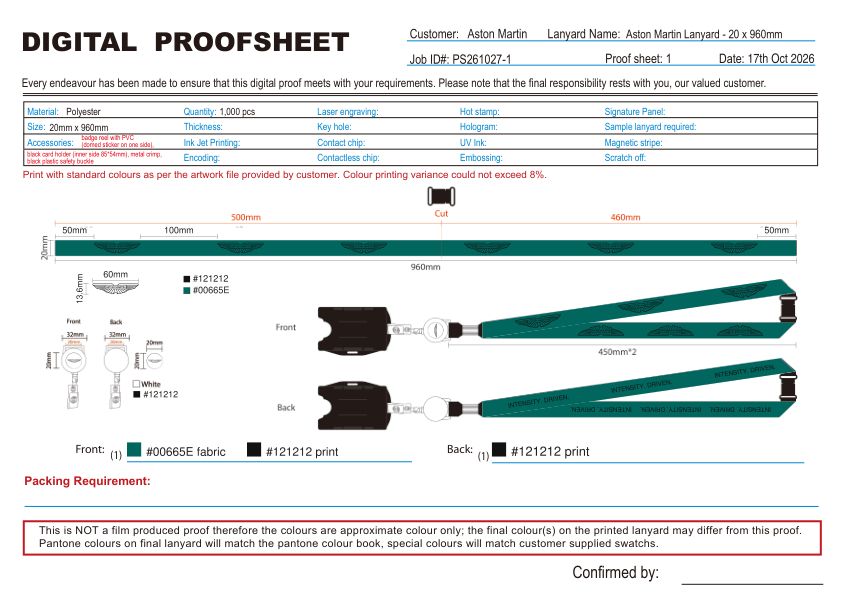

Racing green lanyard
Printed on both sides at its real length, with a breakaway buckle, a swivel hook and a badge holder in mirror chrome. Lay it flat to read the whole strap.
- Strap
- Polyester, 20 x 960 mm
- Both sides
- Hardware
- Buckle, swivel hook, badge holder

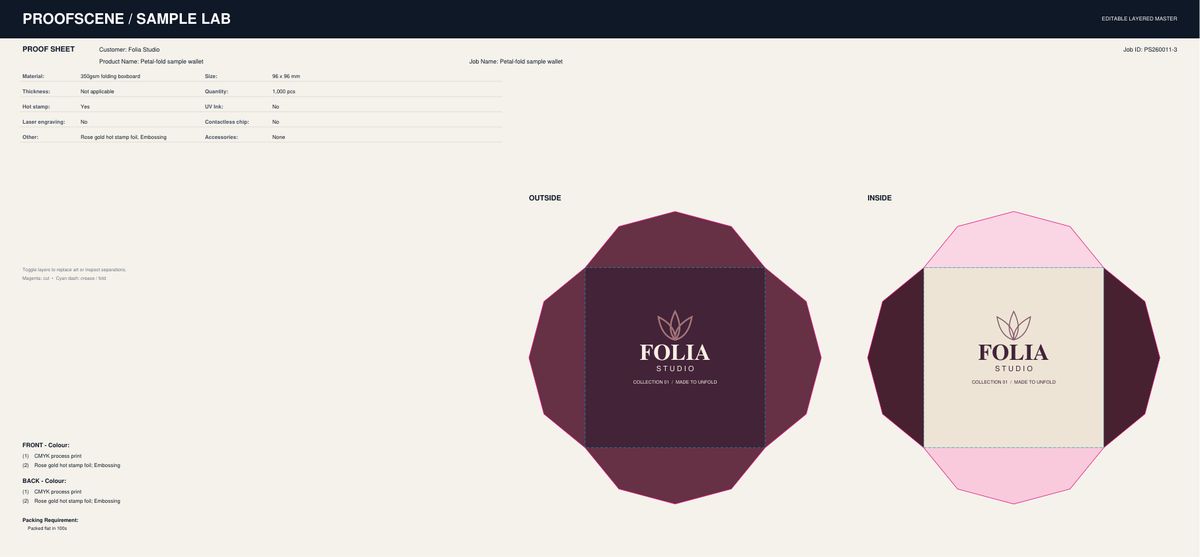

19/19Four-petal folding wallet with rose gold foil

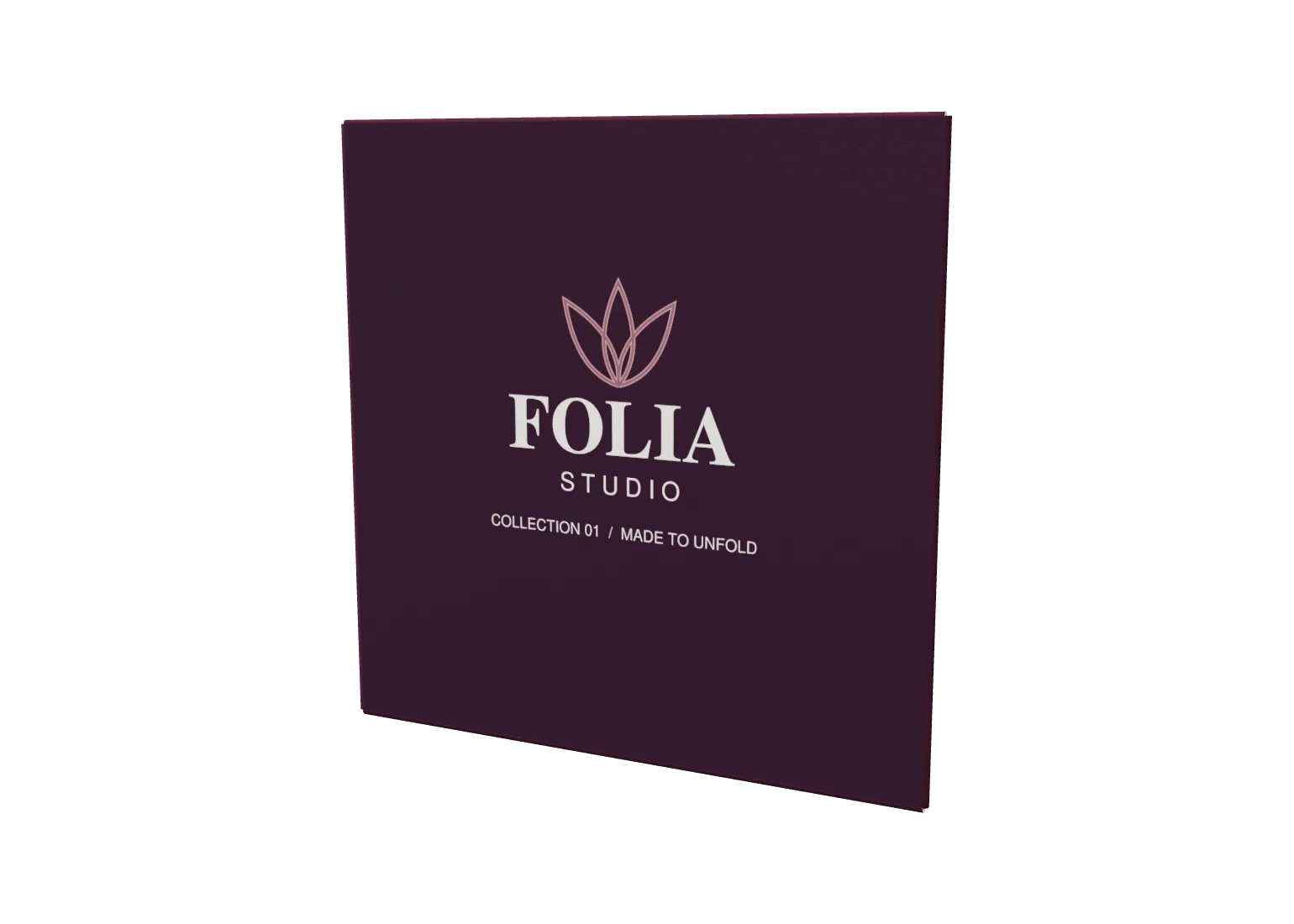

Folia petal wallet
A square wallet whose four die-cut petals fold over one another. Open it flat to see the full net and the print inside.
- Stock
- 350 gsm folding boxboard
- Foil
- Rose gold hotfoil
- Folded
- 96 x 96 mm
Now see your own product in 3D.
- Download any proof above. Each one is a proof sheet ProofScene turns into 3D. The Proof Kit has blank templates and the guide.
- Swap in your artwork. Open it in Illustrator or any PDF editor and replace the design, keeping the layout.
- Drop the PDF into the 3D Proof Studio. Your product comes back in 3D, ready to share as a branded link.
Your proof, live in 3D
Your product
This is your proof sheet, read by the same engine that built every product above. Create a free account to save it, share it as a branded link and download pictures of it.
